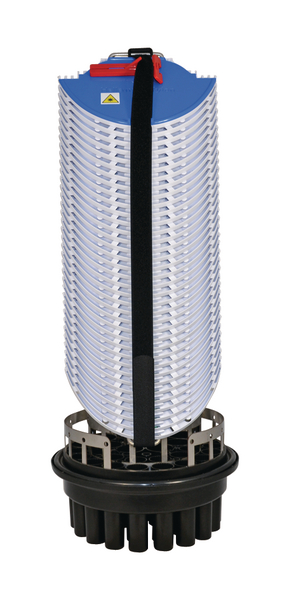

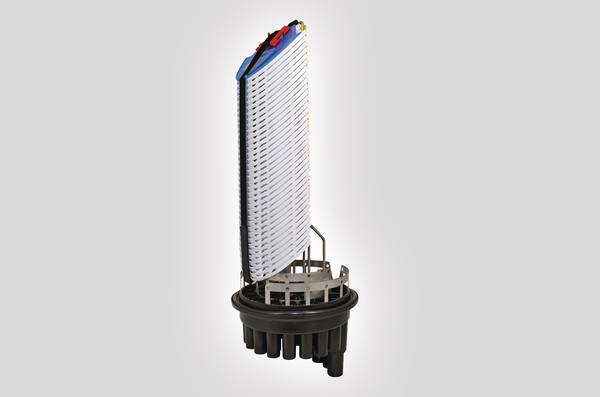

UFC C length tubed closure with heatshrink base and 36 x NZDF 3A splice trays
Art.-No. 857-00753
| UFCTB-CXXHD61
|
Details
- Maximum 432 fibre splice capacity
- 28 round ports and 2 oval ports
- Supplied with 36 x NZDF 3A Splice Trays
- Maximum 12 splices per tray
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional flash test valve and/or grounding feed-through
More products in this product group:
| Colour | Black (BK) |
| Content |
UFC Base Anchor Rings (Inner and Outer) C-Length Cover (Dome) Quick Release Clamp Sealing ‘O’ Ring Tray Support Frame Anchor Fixing Kit (3) 36 x NZDF SE-A 3A Splice Trays Tray Tool Hook and Loop Tray Securing Strap Transportation Tubing Tubefix – Tube to Tray Securing Blocks Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 – 48 Green Marker 1 – 48 |
| Cover Type | C |
| Method of Sealing | Cablelok, Heatshrink |
| PART DESCRIPTION | UFCTB-CXXHD61 |
| Package Content packed in | kit |
| Port | L, LM, T, S, B |
| Port count | 1, 1, 2, 10, 16 |
| Product Family | C Length Single Stack |
| Product Group | UFC Tubed Closure |
| Qty Trays | 36 |
| Short Description | UFC C length tubed closure with heatshrink base and 36 x NZDF 3A splice trays |
| Splice Capacity | 432 |
| Technical Description | The UFC C Length Single Stack closure is available with a Cablelok (Polypropylene) or Heatshrink (Flame Retardant Polypropylene) base. The base configuration of 28 round ports and 2 oval ports covers a cable diameter range of 4.0 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting and support system is manufactured from Grade 304 stainless steel and is supplied 36 x NZDF SE-A trays giving a maximum of 432 fibre splices. The tubed closure and position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays. |
| Type | UFCTB-CXXHD61 |
| Type of Tray | Hellipse NZDF SE-A |
