CCE with 1 x SC SX APC Adaptor
Art.-No. 857-01441 | CCE-A11121TX1/BK | Details

Customer Connection Enclosure with 1 SC APC adaptor.

1 x SC APC Simplex Adaptor
Fibre Management for 4 x 3A splices
Integral positive fibre management and storage capacity
6 inbound/outbound access points (2 x 6.0-8.5mm and 1 x 2.5 - 6.5mm)
Through the wall capability
Loop through facility
Tamper-proof fitting - captive screw and nut
IP55 Rated

Add to watchlist

Distributors near you

Downloads CAD-Download

More products in this product group:

Customer Connection Enclosure >

Base Data

Application	The Customer Connection Enclosure (CCE) has been designed to be used as an external building entry point. The closure can be wall mounted providing a fibre termination and external network test point. The CCE has been designed to be the same size as a 'Brick Blow-Out Cover' to cover any unslightly damage caused by drilling.
Adapter Capacity	2
Cable ∅ max	8.5mm
Cable ∅ min	2.5mm
Colour	Black (BK)
Connector Colour	Green (GN)
Connector Type	SC-APC
Content	1 x SC/APC Simplex Adaptor Cable Entry Kit 2 x 6.0 - 8.5mm/1 x 2.5 - 6.5mm Mechanical Fixing Kit Wall Mounting Kit Laser Label
Installed Adapters	1
Material	Acrylonitrile Butadiene Styrene, UV-stabilised (ABSUV)
PART DESCRIPTION	CCE-A11121TX1/BK
Pack Cont.	1pc.
Package Content packed in	EA
Pigtail Cable Capacity	0
Product Family	Fibre Optic External Enclosure
Product Group	Customer Connection Enclosure
Short Description	CCE with 1 x SC SX APC Adaptor
Splice Capacity	4

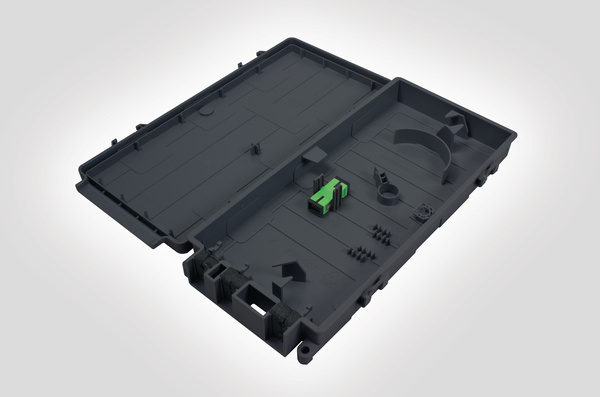

Technical Description	The Customer Connection Enclosure (CCE) is supplied with 1 x SC APC Simplex Adaptor. The closure is manufactured from UV stable ABS with a hinged lid which locks in the open position to allow for quick and clear access to the internal fibre. The closure has 6 entry/exit ports at the bottom of the closure which are suitable for cables and ducts up to a maximum diameter of 8.5mm. A loop through facility allows for single fibre elements to be removed and spliced whilst the remaining fibres can be fed on to the next connection point. A single port in the rear of the closure allows for fibre to be passed through the wall into the customer premises. Mechanical fixing is provided to secure all incoming/outgoing cables/blown fibre ducts and to provide strain relief where necessary. Internal positive fibre management and fibre retention clips maintain a minimum 30mm bend radius throughout for up to a maximum of 50m of 1.1mm diameter cable.
Type	CCE-A11121TX1/BK
Variant	Outdoor FTTx Enclosures
