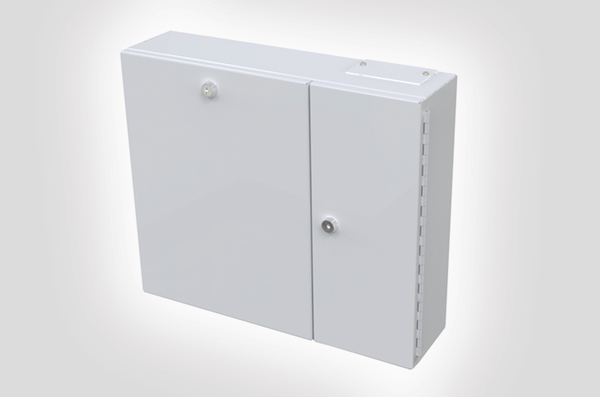

Integrated Routing Connectorised Fibre Enclosure with 24 SC-IR Trays
Art.-No. 857-00825
| ENIR-BCT-24SC
|
Details
- Accommodates 48 LC Duplex or SC Simplex connectors (up to 96 fibres)
- Connectorisation on user side
- Positive fibre management to ensure consistent 30mm minimum fibre bend radii throughout
- Fibre management system and storage area
- Accommodates both SC-IR and SE-IR trays
- Removable splice tray door aids installation of primary fibre
- Separate network operator/user compartments
More products in this product group:
| Content |
Fibre Management System 12 SE-IR or 24 SC-IR Trays Fibre Optic Routing Module Fibre Optic Storage Unit Fibre Optic Storage Unit Lid Fibre Slot Entry Module Fibre Slot Retaining Block Tray Lid |

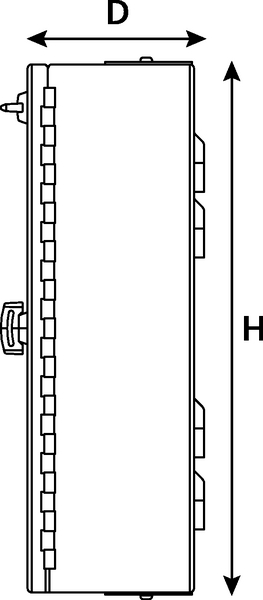

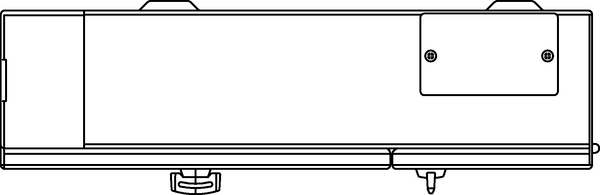

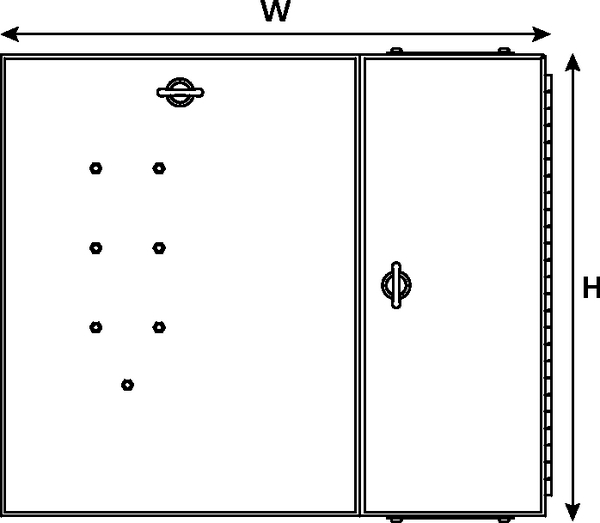

| PART DESCRIPTION | ENIR-BCT-24SC |
| Product Family | Fibre Optic Internal Enclosure |
| Product Group | Integrated Routing Connectorised Fibre Enclosure |
| Qty Trays | 24 |
| Short Description | Integrated Routing Connectorised Fibre Enclosure with 24 SC-IR Trays |

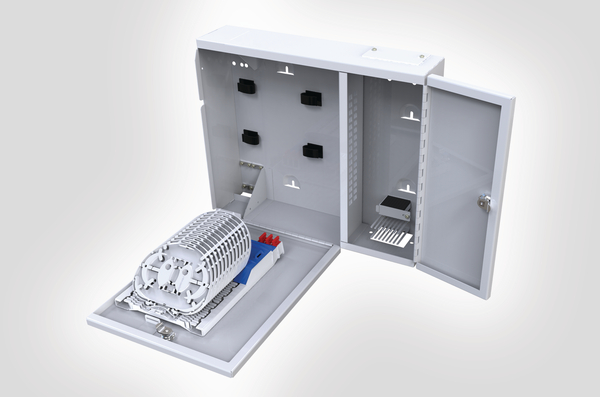

| Technical Description | The Integrated Routing (IR) fibre enclosure is manufactured from white powder coated mild steel with top and lower cable entry points allowing access for a maximum of 4 cables with a maximum diameter of 20mm (when used with the optional cable bridge clamp). The design of the closure provides support for up to 112 5mm blown fibre tubes when utilising both the top and bottom cable entry points (optional duct manager available). The fibre management system allows the installer to organise and configure the fibre prior to routing it on to the trays (when using the optional Foam Fibre Manager). The closure has separate network operator and user compartments. The network operator compartment accommodates a maximum of 24 SC-IR or 12 SE-IR trays (or a combination of SC and SE trays) which are fitted on to the removable splice tray door. The separation panel between the compartments allows for the connection of fibre from the network operator compartment to the user compartment using 48 LC Duplex or SC Simplex fibre connectors (up to 96 fibres). The modular design of the trays and fibre optic routing module allow for the trays to be easily clipped in to place. The system allows for easy routing of fibre on to the trays. The trays and the fibre optic routing module are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide fibre elements into the IR system, the foam pad on the retainer is partially cut through to accommodate a range of fibre counts, and the plug is keyed so that it can only be inserted in one direction. All IR System cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre slot retaining block and tray retaining clips are coloured red to aid in identification if they are dropped. |
| Type | ENIR-BCT-24SC |
| Type of Tray | IR SC |
ENIR-MBU-12SE
857-01070
ENIR-MBU-CB
857-01071
FWOA-AX-AX/WH
857-01227
FWOA-XX-AX/WH
857-01624
FWOA-XX-AP/WH
857-01625
FWOA-AP-AP/WH
857-01626
FWOA-LX-LX/WH
857-01621
FWOA-XX-LP/WH
857-01622
FWOA-LP-LP/WH
857-01623
FWOA-XX-LX/WH
857-40384
FWOA-XX-SX/WH
857-01235
FWOA-XX-SP/WH
857-01236
FWOA-SX-SX/WH
857-01627
FWOA-SP-SP/WH
857-01628
FWOA-AXW21-010/WH
857-01378
