BFP - Building Flexibility Point Wall Box
Art.-No. 857-00009 | BFP1019C |  Details

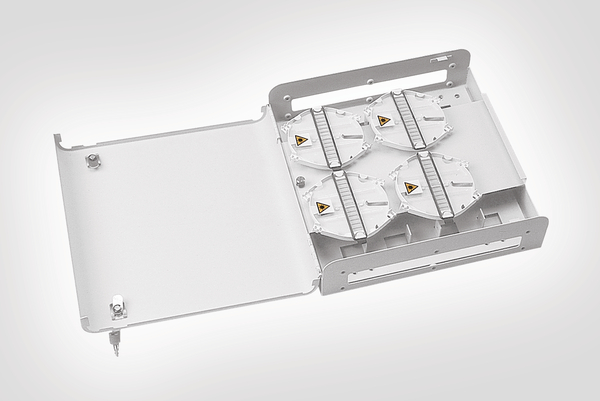

BFP building flexibility point wallbox

    • Maximum 96 fibre splice capacity
    • Cable entry points at the top and bottom
    • Lockable side hinged door
    • Cable strength member anchor points
    • Fibre storage area
    Show more
    Add to watchlist
    Colour Grey (GY)
    Content Building Flexibility Point Box
    Hellafos Trays (4)
    Transportation Tubing
    Tubefix - Tube to tray securing blocks
    Marker Kit
    Red Marker 1 - 48
    Green Marker 1 - 48
    Isopropyl Alcohol Wipes
    PART DESCRIPTION BFP1019C
    Package Content packed in bag
    Product Description Building Flexibility Point Wall Box
    Product Family Fibre Optic Internal Enclosure
    Product Group BFP - Building Flexibility Point Wall Box
    Qty Trays 4
    Technical Description The Building Flexibility Point (BFP) box is manufactured from epoxy coated steel and is designed for the protection of fibre optic cable splices within internal environments. It contains 4 Hellafos splice trays which are mounted on the single hinged splice tray mounting plate. Each of the trays can achieve a maximum 24 splice capacity when using 3A heatshrink splices. The box is fitted with a lockable single hinged door, a back plate with cable strength member anchor points and the fibre storage area is positioned behind the hinged splice tray mounting plate. A range of glands and bulkhead plates for cable entry are detailed below and must be ordered separately.
    Type BFP1019C
    Type of Tray Hellafos

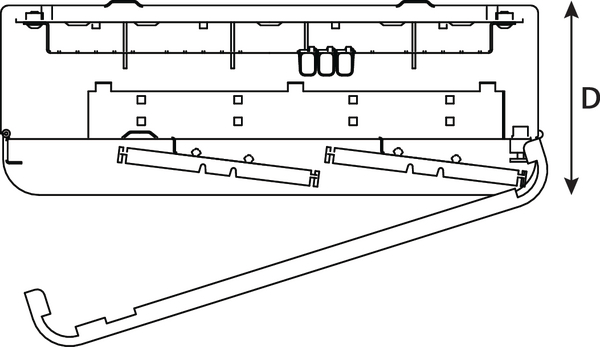

    Depth (D) 128mm

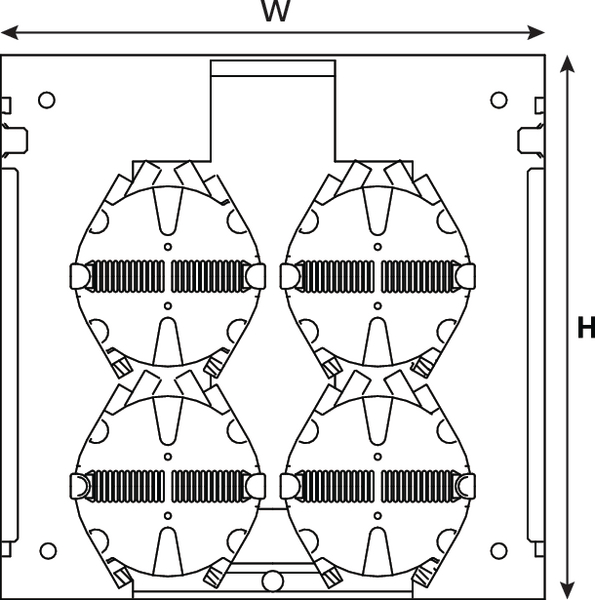

    Height (H) 350mm
    Width D1 350mm
    Hazardous Goods No
    Customs Number 85176200
    GTIN-13 / EAN 5022660983825
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
