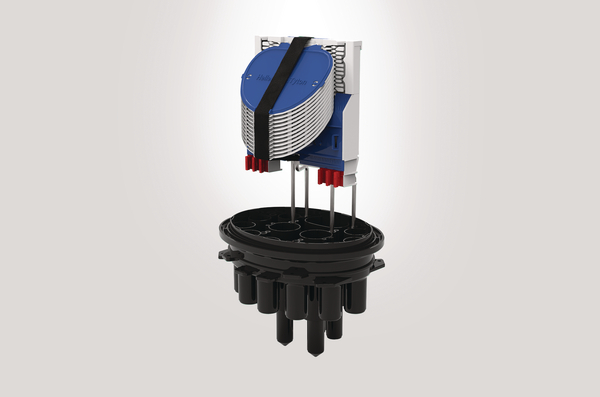

FDN 16 port A length IR closure with 12 x SC-B-IR MKI moulded splice holder trays
Art.-No. 857-01014 | FDNIR-AXXAXN | Details

Maximum 144 fibre splice capacity
15 round ports and 1 oval port
Moulded supports allow the cover to be removed whilst closure is left in-situ
Fixing points for external cable management attachments
Positive fibre management to ensure consistent 30mm bend radius throughout
Bi-directional fibre routing
Supplied with 12 x SC-B-IR MKI Moulded Splice Holder Trays
Maximum 12 splices per tray
Cablelok compatible for all port sizes
Quick release cover
Optional pressure release valve

Add to watchlist

Distributors near you

Downloads

More products in this product group:

FDN 16 Port Integrated Routing Closure >

Base Data

Colour	Black (BK)
Content	FDN 16 Port IR Base A-Length Cover Quick Release Clamp Sealing ‘O’ Ring Fibre Optic Routing Module Fibre Optic Storage Unit Fibre Optic Storage Unit Lid Fibre Slot Entry Module Fibre Slot Retaining Block 12 x SC-B-IR MKI Moulded Splice Holder Trays Reusable Cable Ties Tray Lid Tray Tool Anchor Fixing Kit (3) Spiral Binding Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 – 12 Green Marker 1 – 12
Cover Type	A
Material	Polypropylene (PP)
Method of Sealing	Cablelok, Heatshrink
PART DESCRIPTION	FDNIR-AXXAXN
Package Content packed in	box
Port	L, T, B, S
Port count	16
Product Family	A Length
Product Group	FDN 16 Port Integrated Routing Closure
Qty Trays	12
Short Description	FDN 16 port A length IR closure with 12 x SC-B-IR MKI moulded splice holder trays
Technical Description	The FDN 16 Port Integrated Routing (IR) A Length closure is supplied with a Polypropylene base. The base configuration of 15 round ports and 1 oval port covers a cable diameter range of 4.8 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The moulded supports on the base allow the cover to be removed from the closure whilst it is still in-situ. Bosses moulded in to the closure base enable fixing of external cable management attachments. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 12 x SC-B-IR MKI moulded splice holder trays. The position of the mounting system allows easy access for the routing of the fibre on to the trays. The trays and fibre optic routing module are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide fibre elements in to the IR system, the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre slot retaining block and tray retaining clips are coloured red to aid in identification if they are dropped.
Type	FDNIR-AXXAXN
Type of Tray	IR SC-B
Variant	Outdoor FTTx Enclosures

Product Dimensions

Length (L)	455mm
Length (mm)	455mm
Width D1	312mm
Width D2	222mm

Downloads

Specifications

Logistics and Packaging

Country of Origin	GB
Customs Number	85176200
GTIN-13 / EAN	5022660133275
Packaging 1 - Height (m)	0.32m
Packaging 1 - Length (m)	0.5m
Packaging 1 - Qty	1
Packaging 1 - Type	box
Packaging 1 - Volume (m³)	0.0512m³
Packaging 1 - Weight (kg)	5.2kg
Packaging 1 - Width (m)	0.32m
