26/12/2024

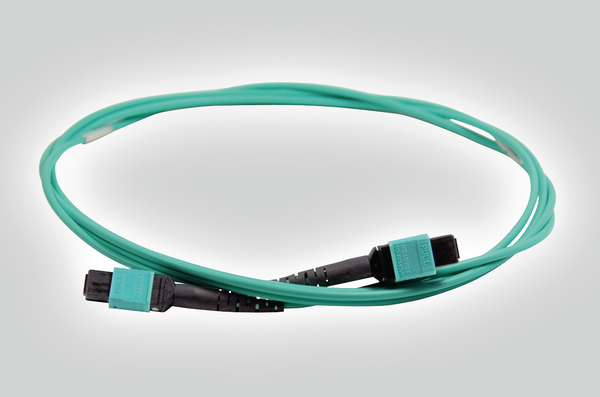

OM3 12 Core Back-Bone Cable
Art.-No. 860-00020 | FLS12M3-MFMFXA-10.0M |  Details

MTP Back-Bone Cable

    • High performance low loss Elite® Connectors from US Conec
    • Compatible with all MTP RapidNet Cassettes
    • Available in OM3, OM4, OS2 and OS1 in 12 or 24 core
    • Can be used as back-bone fibre link or MTP Patch Lead
    • Pre-tested with test results supplied
    Show more
    Add to watchlist
    Downloads
    Colour Aquamarine (AE)
    Local order number FLS12M3-MFMFXA-10.0M
    PART DESCRIPTION FLS12M3-MFMFXA-10.0M
    Performance Category OM3 Multimode
    Product Description The MTP Back-Bone cable is pre-terminated and pre-tested ensuring the highest performance. The MTP Connector is the low loss Elite® Connector from US Conec and is compatible with all RapidNet MTP Cassettes. The MTP Back-Bone cable can be used for high density patching between two MTP ports and is particularly suited to applications where space is limited.
    Product Family Multimode MTP
    Product Group 12 Core MTP Back-Bone Cables
    Short Description OM3 12 Core Back-Bone Cable
    Technical Description US Conec MTP Connectors provide quick and simple connection for 12 or 24 fibres in a single housing. The Elite® low loss Connector ensures the optical alignment through patented high precision pins and floating ferrule and conforms to IEC 61754-7 and TIA 604-5. NB. Part numbers shown are for 10m length, other lengths are available.
    Type FLS12M3-MFMFXA-10.0M
    Length (L) 10.0m
    Country of Origin GB
    GTIN-13 / EAN 5022660935817
