MDU S3 with SC-B trays and basket
Art.-No. 857-01483 | MDU-S3-BXN |  Details

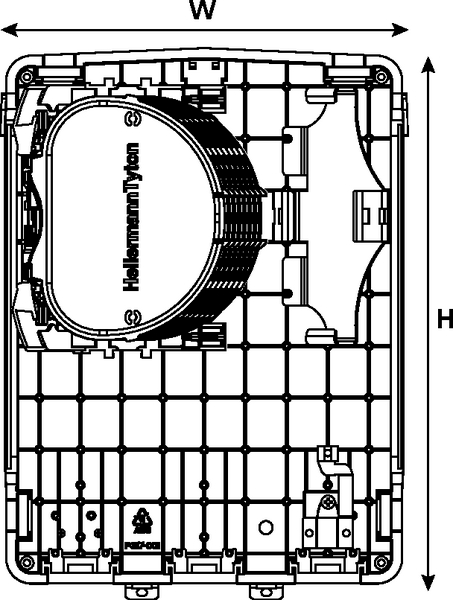

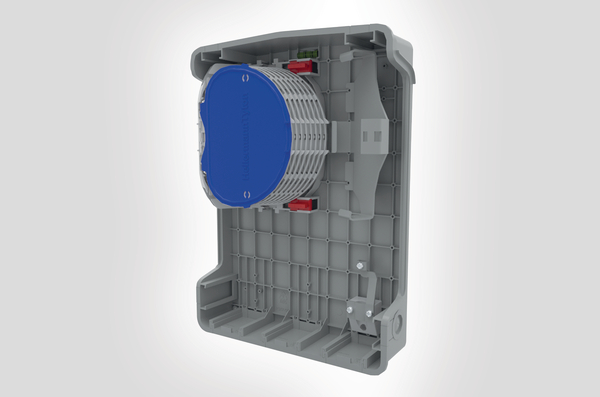

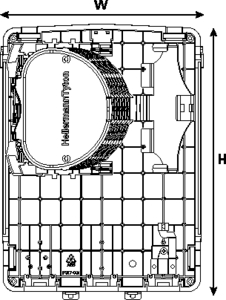

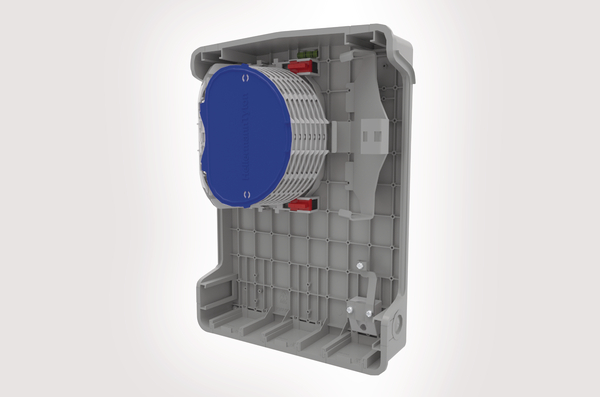

Internal view of the MDU - S3 Splice Enclosure.

    • Maximum 96 Fibre Splices
    • 250µm IR Angled Fibre Management System with provision for 3 PLC Splitters
    • 8 SC-B IR Trays
    • 3 x Entry/Exit Port Blanks
    • Loop Storage Basket
    • Strength Member Anchor
    • In-built spirit level
    • IP54/IK08
    • UV Stable
    • V0 Rating
    Show more
    Add to watchlist
    Downloads CAD-Download
    Application Designed for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Point (P2P) or Point to Multi Point (P2MP) with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
    Colour Grey RAL 7035 (RAL7035)
    Content S3 Enclosure
    250µm IR Fibre Management System
    8 SC-B IR Trays
    3 x Entry/Exit Port Blanks
    Loop Storage Basket
    Cable Anchor
    In-built spirit level
    Fibre Picker
    Wall Mounting Kit
    Red and Green Polyspiral Tubing(2M)
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION MDU-S3-BXN
    Pack Cont. 1pc.
    Package Content packed in EA
    Port count 7
    Product Family Fibre Optic External/Internal Enclosure
    Product Group S3 Series MDU/MBU Enclosures
    Qty Trays 8
    Short Description MDU S3 with SC-B trays and basket
    Splice Capacity 96
    Technical Description The S3 enclosure is configured with the HellermannTyton 250µm IR Management System. The management system accommodates 8 SC-B R trays giving a maximum of 96 3A fibre splices and 3 PLC splitters. The position of the fibre management system allows for easy access for the routing of fibre on to the trays. The trays and fibre optic routing modules are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide the fibre elements on to the IR system; the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre retaining block and tray retaining clips are coloured red to aid in identification if they are dropped. A loop storage basket provides space for the storage of fibre loops. The enclosure is 340 x 247 x 76mm (H x W x D) and manufactured in light grey (RAL 7035), UV stable ABS (Acrylonitrile Butadiene Styrene) and has an IP54, IK08 and V0 rating. Designed with 7 input/output ports, 3 across the bottom, 2 on the top and 1 on each side, each port will accommodate a 20mm cable gland. A 100 x 25mm inset position on the front cover allows for a customer logo to be moulded in to the enclosure.
    Type MDU-S3-BXN
    Type of Tray IR SC-B
    Variant Indoor/Outdoor FTTx Enclosures
    Depth (D) 76mm
    Height (H) 340mm
    Weight/Unit 1.07kg
    Width (W) 247mm
    IP-Rating IP54
    Country of Origin GB
    GTIN-13 / EAN 5022660164187
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC001124
    ETIM 9.0 Key EC001124
    UNSPSC Key 43223338
    Show all
