Aerial Fibre Node (AFN) 32 Drop

The Aerial Fibre Node (AFN) 32 Drop has been designed for deployment within the last mile of the FTTx network. This enclosure can be used within a P2P (Point to Point) or P2MP (Point to Multi Point) network with the addition of connectorised PLC splitters or pigtails and adaptors.

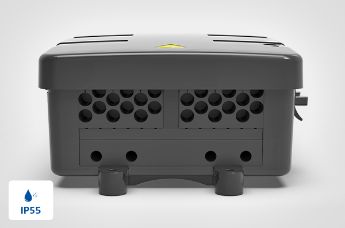

The AFN 32 Drop comes with an IP55 and IK09 rating allowing the enclosure to withstand any external environmental conditions it might be subjected to. The AFN cover is tamper proof to prevent any unwanted or malicious interference with the internal fibre connections.

View in 3D

You can spin around (swipe or click and hold left hand mouse button), zoom in (pinch fingers or rollerball on your mouse) and open the lid/tray by clicking on the top navigation buttons.

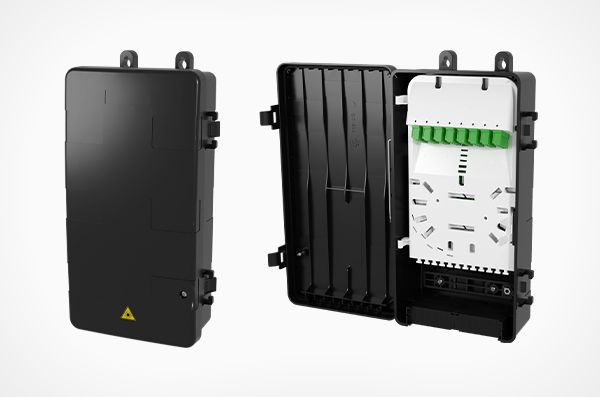

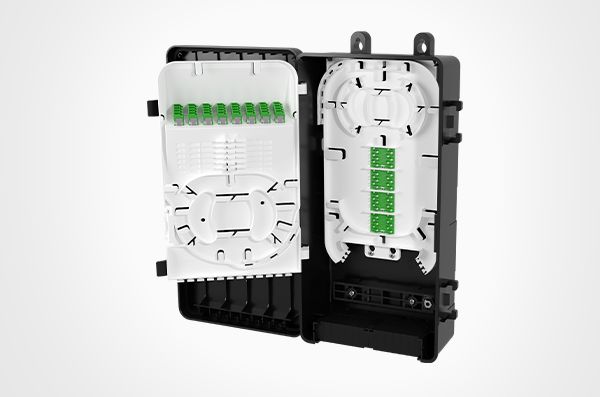

The AFN 32 Drop is manufactured from UV stable black polycarbonate with a completely detachable lid which can also be snapped back in to position using the snap back hinges allowing unrestricted access to all fibre management areas.

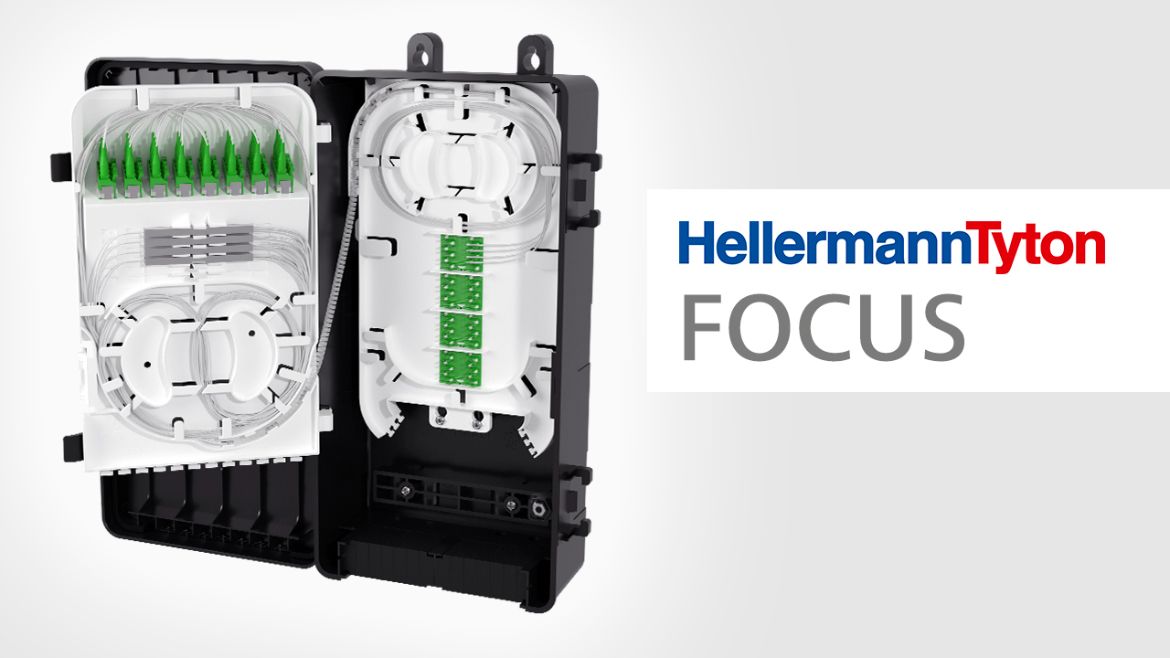

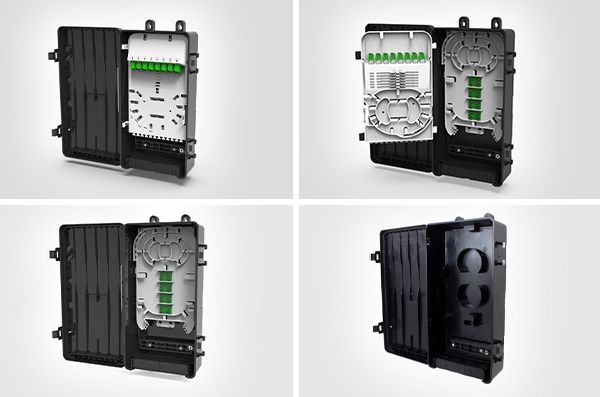

The enclosure has 3 separate management areas for inbound cable, fibre splice management and drop cable (customer connection) management:

• The inbound cable management area has four dedicated dedicated cable entry ports which supports both cable end and mid-span applications with loop storage capacity for up to 4m of 144 core fibre cable and the entry port is sealed with a cable entry kit to maintain the IP55 rating.
• The fibre splice management area has capacity for a maximum of 48 3A splices and maintains positive fibre management (30mm minimum bend radius) throughout. The tray has a crossover facility which allows for alternative routing requirements and a fibre storage capacity of 1.5m for 250µm fibre.

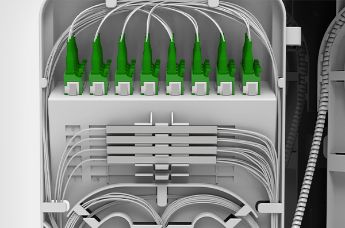

• The drop cable management area presents 32 LC APC connections using 8 x LC APC quad adaptors for connection to industry standard pre-terminated drop cables and a maximum of 6 PLC splitters (60mm x 7mm x 4mm) can be fitted on the inside of the management area.

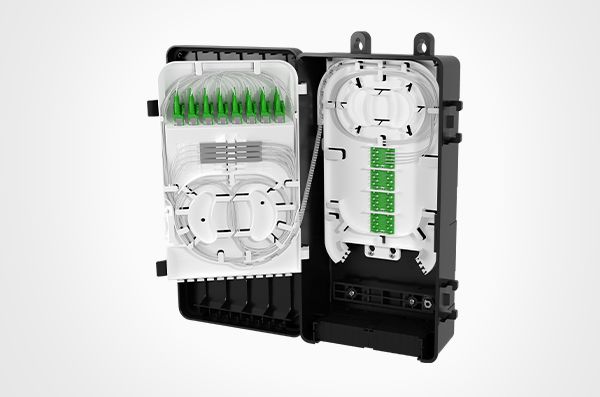

• Separation of spliced feeder cable from connectorised drop cables

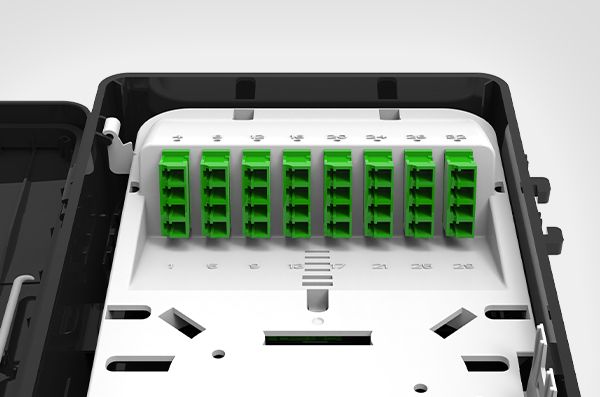

• 32 LC APC customer connections

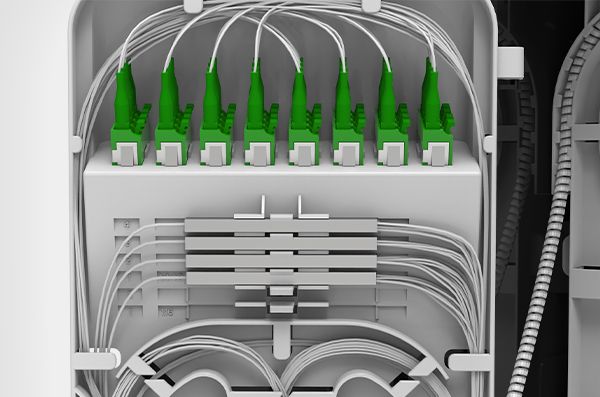

• Maximum of 6 x 1:8 Bare End to LC/APC PLC Splitters (P2MP applications)
• 4 inbound/24 outbound ports
• Positive fibre management (30mm bend radius)

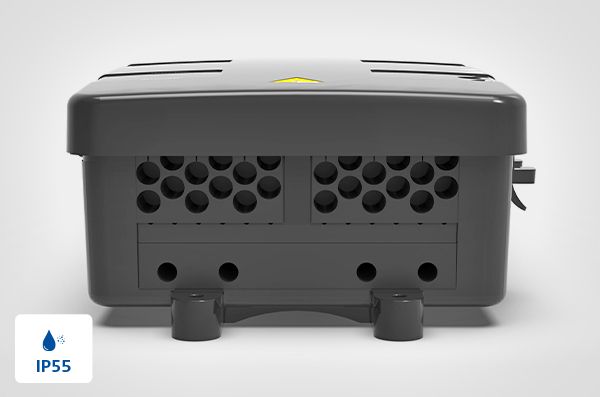

• IP55 and IK08 rating
• Secure, tamper proof cover
• Physical separation of installation fibre and customer connections

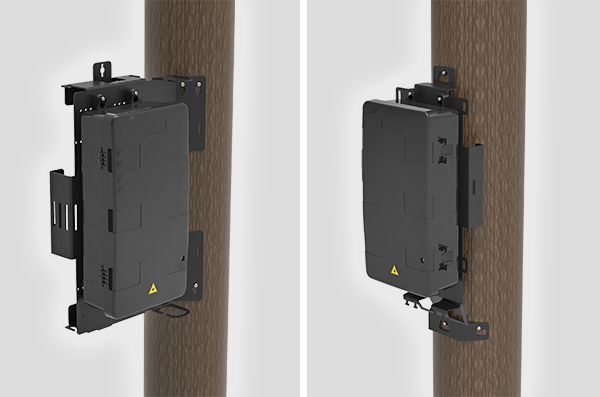

• Pole or building facade mounting features

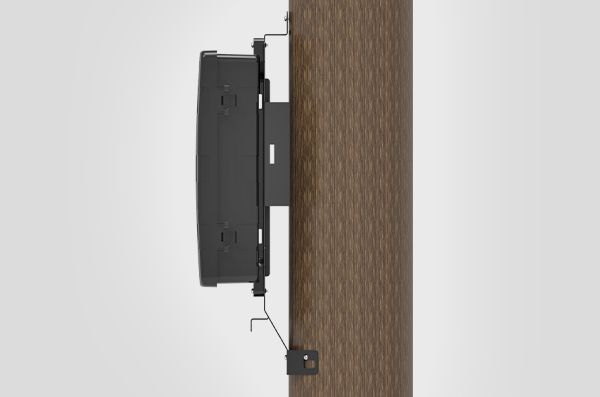

• Low profile
• Compliant with IEC 61753 and IEC 61300-3-34
• UV stable Polycarbonate (PCUV)
