AFN with SC SX APC Adaptors and 6 X 1:4 PLC Splitters
Art.-No. 857-01641 | AFN-9999SCTS641/BK |  Details

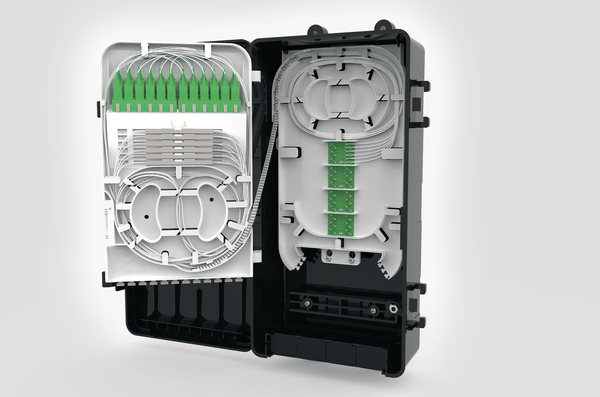

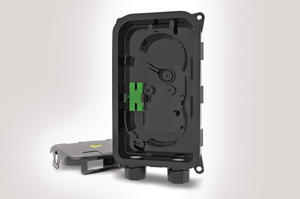

Internal view of the AFN Aerial Fibre Node.

    • 24 SC APC Simplex Adaptors
    • 4 Inbound/24 Outbound ports
    • Separation of inbound fibre from connectorised drop cables
    • Positive fibre management to maintain consistent 30mm minimum bend
    • 6 X 1:4 Bare End to SC APC Connectors
    • Maximum of 48 3A splices
    • IP55 and IK08 rating

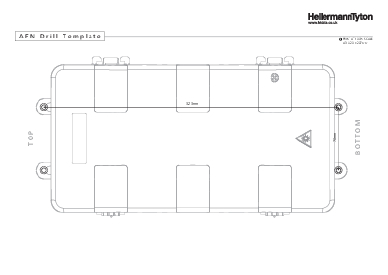

    • Pole or building/facade mounted
    Show more
    Add to watchlist
    Downloads CAD-Download
    Application The AFN (Aerial Fibre Node) has been designed for deployment within the last mile of the FTTx network. This enclosure can be used within a P2P (Point to Point) or P2MP (Point to Multi Point) network with the addition of connectorised PLC splitters or pigtails and adaptors.
    Cable ∅ max 7.2mm
    Cable ∅ min 0.1mm
    Colour Black (BK)
    Connector Colour Green (GN)
    Connector Type SC-APC
    Content AFN Enclosure
    6 x 1:4 Bare End to SC APC Connectors
    24 SC SX APC Adaptors
    Entry/Exit Port Seals
    Fibre Picker
    Wall Mounting Kit
    Cable Ties Red/Green
    Material Polycarbonate (PC)
    PART DESCRIPTION AFN-9999SCTS641/BK
    Package Content packed in box
    Product Description AFN with SC SX APC Adaptors and 6 X 1:4 PLC Splitters
    Product Family Fibre Optic External Enclosure
    Product Group AFN - Aerial Fibre Node
    Short Description AFN with SC SX APC Adaptors and 6 X 1:4 PLC Splitters
    Splice Capacity 24
    Technical Description The AFN - Aerial Fibre Node is manufactured from UV stable black polycarbonate with a completely detachable lid which can also be snapped back in to position using the snap back hinges allowing unrestricted access to all fibre management areas. The enclosure has 3 separate management areas for inbound cable, fibre splice management and drop cable (customer connection) management. The inbound cable management area has a dedicated cable entry port which supports both cable end and mid-span applications with loop storage capacity for up to 4m of 144 core fibre cable and the entry port is sealed with a cable entry kit to maintain the IP55 rating. The fibre splice management area has capacity for a maximum of 48 3A splices and maintains positive fibre management (30mm minimum bend radius) throughout. The tray has a crossover facility which allows for alternative routing requirements and a fibre storage capacity of 1.5m for 250µm fibre. The drop cable management area presents 24 SC APC Simplex adaptors for connection to industry standard pre-terminated drop cables and a 6 X 1:4 PLC splitters. The drop cable management area cover prevents access to the network cables and splicing area and the adaptors are angled and spaced to allow for inspection prior to connection. Twelve anchor guides are provided for securing the drop cables (maximum diameter 4.2mm) and an integral seal maintains the IP55 rating.
    Type AFN-9999SCTS641/BK
    Variant Outdoor FTTx Enclosures
    Depth (D) 90mm
    Height (H) 342mm
    Width (W) 177mm
    Country of Origin GB
    GTIN-13 / EAN 5022660166853
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
    Show all
