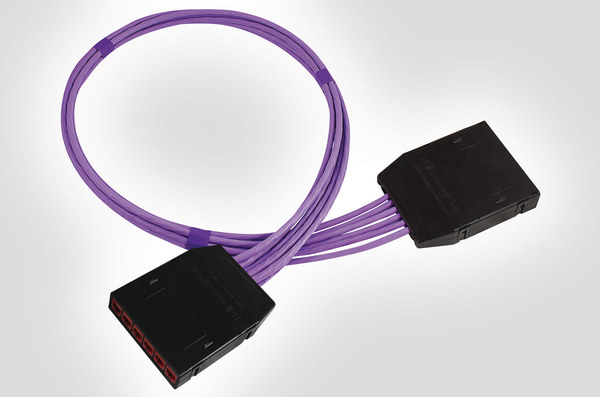

RapidNet 6 Port Category 6A UTP Cassette to Cassette
Art.-No. 859-51316
| RN06U6A-CACARD-10.0M
|
Details
- Exceeds Category 6A performance standards
- 24 ports in 1U of space
- Factory pre-terminated and tested
- 5* different colour options
- Reduce installation times by up to 85%
- Backward compatible with Category 6, Category 5e, Category 5 and voice
More products in this product group:
| Colour | Violet (VT) |
| Connector Colour | Red (RD) |
| Connector Type | RJ45 UTP |
| PART DESCRIPTION | RN06U6A-CACARD-10.0M |
| Pack Cont. | 10.0m |
| Performance Category | Category 6A (Class EA) |
| Port count | 6 |

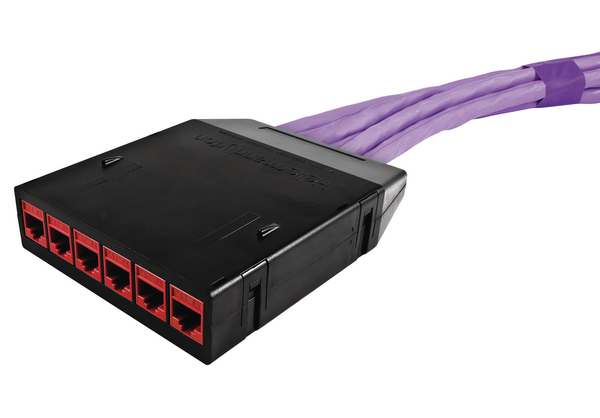

| Product Description | The RapidNet Category 6A UTP Cassette to Cassette is pre-terminated with 6 Category 6A GST UTP keystone jacks. The RapidNet 6 port cassette presents 6 RJ45 ports in one cassette, with 4 cassettes fitting into a standard RapidNet Patch Panel. The cassette simply pushes into the panel, snapping in with a releasable clip and a fully loaded panel presents 24 ports in 1U of space. The Category 6A GST UTP keystone jacks are available in 5 colours (Black (BK), Blue (BL), Green (GN), Red (RD) and Yellow (YL)) with the same colour being used at both ends for all six jacks. This allows for differentiation of looms at the patch panel aiding identification of access levels, paths, routes or systems within the network. |
| Product Family | Cassette to Cassette |
| Product Group | RapidNet 6 Port Category 6A UTP |
| Short Description | RapidNet 6 Port Category 6A UTP Cassette to Cassette |
| Technical Description | The RapidNet Category 6A UTP solution is designed using U-UTP cable loosely bundled in a 5 around 1 configuration which maintains performance and reduces alien crosstalk. The cassette is manufactured with a simple push clip mechanism and polarising pips to prevent incorrect insertion. Rear cable management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C Category 6A standards. All RapidNet Category 6A cables are made with LS0H material, complying with the latest European fire ratings. NB: Part Numbers given are for 10m looms in the standard 5 colours Black(BK), Blue(BL), Green(GN), Red(RD) and Yellow(YE). Lengths are available from 10m to 90m in 0.5m increments. *An additional 7 colour options are available on request, contact HellermannTyton Sales Desk for further details. |
| Type | RN06U6A-CACARD-10.0M |
