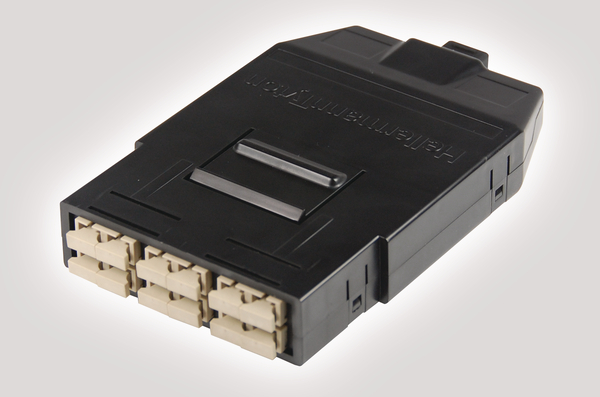

OS2 RapidNet Fibre SC 12 Core Cassette with 1 Rear MTP Connector
Art.-No. 859-22767
| RNFMD12-SCMMS2-XX.XX
|
Details
- Up to 48 fibres in 1U of Space
- Significantly reduced installation times
- Available in OM3, OM4, OS2 and OS1
- Dual labelling fields
- Interchangeable with other RapidNet Cassettes
- MTP rear connector ideal for installations in areas of limited space
- Pre-tested with test results supplied
More products in this product group:
| Connector Colour | Blue (BU) |
| Connector Type | MTP, SC |
| Local order number | RNFMD12-SCMMS2-XX.XX |
| PART DESCRIPTION | RNFMD12-SCMMS2-XX.XX |
| Performance Category | OS2 Single Mode |
| Port count | 12 |
| Product Description | The RapidNet Fibre SC Cassette with MTP connectivity is pre-terminated offering SC connectivity in either single mode or multimode. The RapidNet SC cassette offers up to 12 (6 duplex) ports in one cassette and has 1 MTP connector on the rear of the case for use with MTP back bone cables or fibre fan outs. The presentation of 12 ports in one cassette enables up to 48 fibres in 1U of rack space, with 4 cassettes fitting into a RapidNet Patch Panel. The RapidNet SC Cassette with MTP connectivity solution has been designed to make installation quicker and easier, especially where space is limited, by providing reduced installation times, efficient use of space, flexible configurations and high performance. |
| Product Family | Cassette with 1 Rear MTP Connector |
| Product Group | RapidNet Fibre SC 12 Core |
| Short Description | OS2 RapidNet Fibre SC 12 Core Cassette with 1 Rear MTP Connector |
| Technical Description | The cassette is manufactured with a single push clip mechanism and polarising clips to prevent incorrect insertion. Fibre Optic management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. The individual fibres within the cassette are managed using positive bend radius management to ensure minimum losses and maximum performance. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C standards |
| Type | RNFMD12-SCMMS2-XX.XX |
