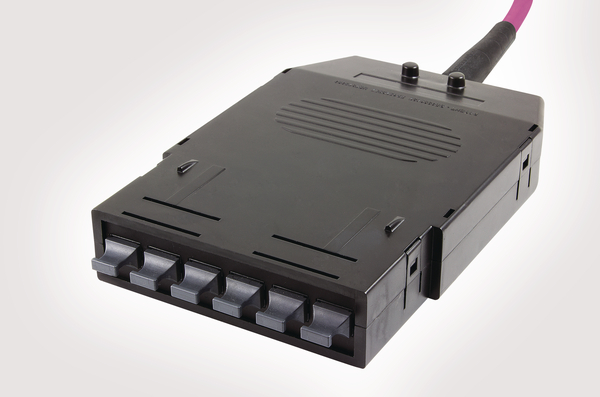

OM4 RapidNet MTP 48 Fibre Cassette to Cassette
Art.-No. 859-23212
| RNFT648-MCMCM4-10.0M
|
Details
- Up to 192 fibres in 1U of Space
- High performance low loss Elite® connectors from US Conec
- Significantly reduced installation times
- Available in OM4 and OM5
- Interchangeable with other RapidNet Cassettes
- Pre-tested with test results supplied
- Male MTP Connectors
More products in this product group:
| Colour | Magenta (MG) |
| Connector Colour | Black (BK) |
| Connector Type | MTP |
| PART DESCRIPTION | RNFT648-MCMCM4-10.0M |
| Performance Category | OM4 Multimode |
| Product Description | The RapidNet MTP VHD Cassette to Cassette is pre-terminated with each cassette offering 6 x 8 fibre MTP connectors, which enables up to 192 fibres in 1U of rack space, with 4 cassettes fitting into a RapidNet Panel. The RapidNet MTP VHD solution has been designed to meet the demands of the data centre by providing reduced installation times, efficient use of space, flexible configurations and high performance. This high density fibre solution is particularly suited to use in Storage Area Network (SAN) applications. |
| Product Family | Cassette to Cassette |
| Product Group | RapidNet MTP 48 Fibre |
| Short Description | OM4 RapidNet MTP 48 Fibre Cassette to Cassette |
| Type | RNFT648-MCMCM4-10.0M |
