SP-G SpeedPipe Ground 20/16MM
Art.-No. 872-00075 | SP-G-20/16MM-3841-PE-HD-VT |  Details

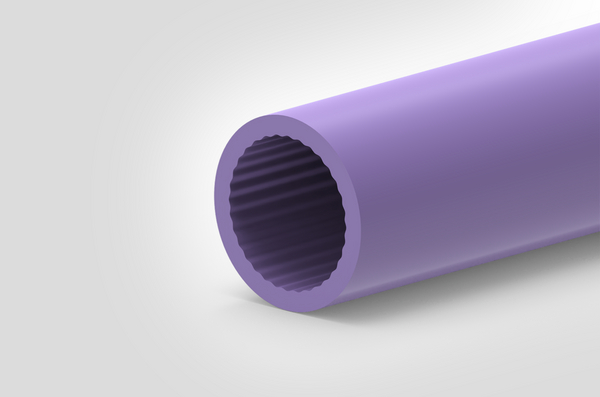

SpeedPipe 20/16mm in Purple

    • Ideal for Direct Buried (DB) applications
    • Optimised for long distance blowing
    • Suitable for Push or Pulled installations
    • Superior dimensional tolerances
    • Very low ovality
    • Coated with LFL (Low Friction Liner)
    • 30 bar burst test
    • Made from high quality HDPE
    • Other colours available on request (MOQs apply)
    Show more
    Add to watchlist
    Downloads
    Application Suitable for the extension or construction of passive infrastructure in fibre optic networks speedpipe ground is suitable for direct burying in all FTTx networks as well as for branching-off from existing duct routes.
    Cable ∅ max 12.9mm
    Cable ∅ min 9.47mm
    Colour Purple (PE)
    Local order number 3841
    Material Polyethylene, high density (PE-HD)
    PART DESCRIPTION SP-G-20/16MM-3841-PE-HD-VT
    Pack Cont. 1400m
    Package Content packed in drum
    Product Description The 20/16mm Speedpipe Ground (SP-G) is a thick walled duct manufactured from high quality HDPE material suitable for direct buried applications. The duct is manufactured to a high specification with sliding ribs and a low friction liner (LFL) which provides the optimum air cushion between the fibre optic cable and the duct during the blowing process. The tight manufacturing specification and high apex pressure resistance helps our speedpipe retain its round shape and enables consistent results when blowing in fibre optic cables, even after decades of use in its application.
    Product Family Direct Buried/Thick Walled/HDPE
    Product Group SP-G SpeedPipe Ground
    Short Description SP-G SpeedPipe Ground 20/16MM
    Type SP-G-20/16MM-3841
    Length (L) 1400m
    Wall (WT) 2mm
    Weight/Unit 0.109kg

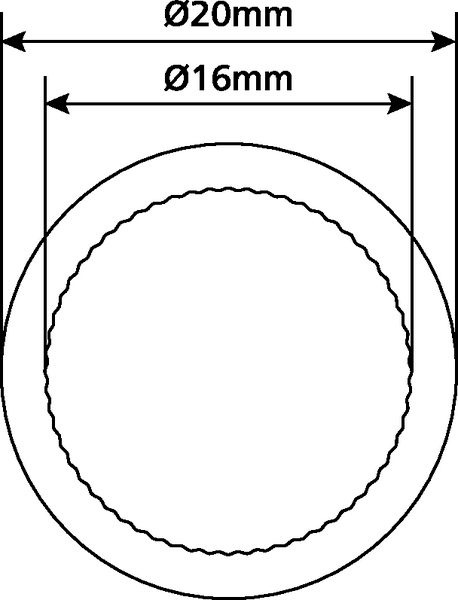

    ∅ 16mm
    ∅ 20mm
    Country of Origin EE
    GTIN-13 / EAN 4031051028404
    Packaging 1 - Height (m) 0.85m
    Packaging 1 - Length (m) 1.2m
    Packaging 1 - Qty 1400
    Packaging 1 - Type drum
    Packaging 1 - Volume (m³) 0.4896m³
    Packaging 1 - Weight (kg) 193kg
    Packaging 1 - Width (m) 0.48m
    Packaging 2 - Qty 1400
    Packaging 2 - Type pallet
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
