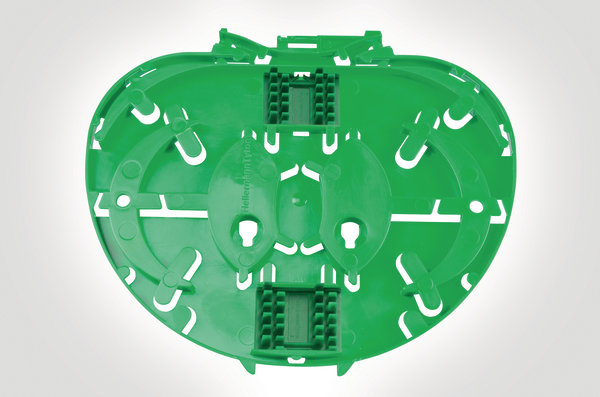

SE-IR Splice Trays with 3A Splice Bridges
Art.-No. 857-40507 | TRAY-SE-IR-GN-2X3A-06 |  Details

Single Element IR Splice Tray with 2 x 3A splice bridges.

    • Positive fibre management - minimum bend radius 30mm
    • 2 fibre entry ports
    • 2 mounting positions for splice inserts
    • Option for optical splitter/3A or ANT splice bridge
    • Optical splitter accommodation up to a maximum of 60 x 7 x 4mm
    • Maximum splice capacity of 24 fibres (double stacked)
    • Different splice bridge options allow for a splice type of up to 60mm
    Show more
    Add to watchlist
    Downloads
    Colour Green (GN)
    Content 6 x Green IR Single Element trays, 12 x Heatshrink (3A) splice protector holders
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION TRAY-SE-IR-GN-2X3A-06
    Pack Cont. 6pcs.
    Package Content packed in bag
    Product Family IR Single Element SE
    Product Group Integrated Routing Fibre Optic Splice Tray
    Qty Trays 6
    Short Description SE-IR Splice Trays with 3A Splice Bridges
    Technical Description The Integrated Routing (IR) single element green tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 148 x 125 x 7mm. The IR single element tray accepts a wide range of splice protector inserts and the maximum splice capacity of the tray is based on 24 double stacked heatshrink (3A) splice protectors up to 60mm long. The IR single element tray is suitable for use in the UFC-IR, FDN-IR or FML-IR closures.
    Type TRAY-SE-IR-GN-2X3A-06
    Type of Tray IR SE
    Depth (D) 7mm
    Height (H) 125mm
    Recov. ∅ d max. 2.4mm
    Width (W) 148mm
    Country of Origin GB
    GTIN-13 / EAN 5022660162923
    Packaging 1 - Height (m) 0.381m
    Packaging 1 - Length (m) 0.254m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0m³
    Packaging 1 - Weight (kg) 0.3kg
    ETIM 7.0 Key EC000762
    ETIM 8.0 Key EC000762
    ETIM 9.0 Key EC000762
    UNSPSC Key 43223337
