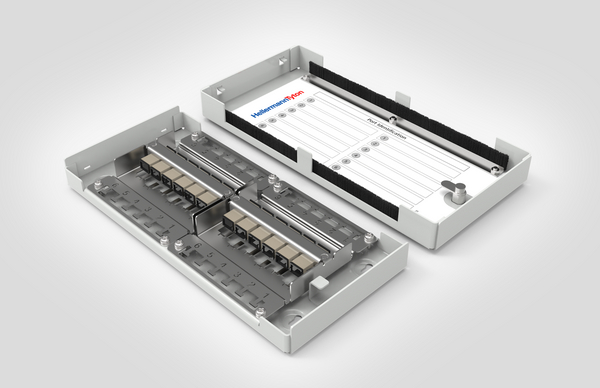

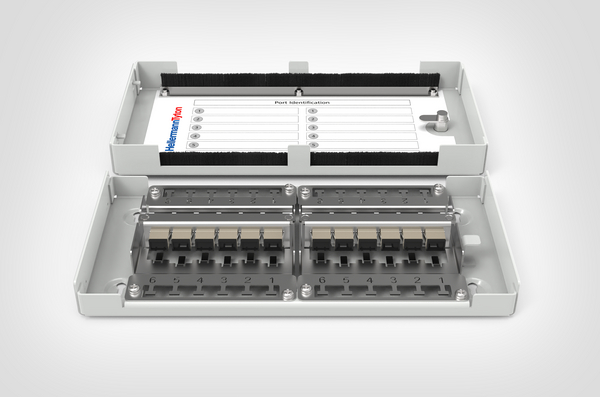

12 Way Modular Zone Termination Box Loaded with 12 x SC Simplex Adaptors.
Art.-No. 854-20035 | ZTB12SCSBGXXXX/GY | Details

Supports Category 6A, Category 6 and Fibre
Uses Hellermantytons Modular Connectivity
Supports PoE when using Cat6a / Cat6 Keystone Jacks
Accepts Shielded and Unshielded Jacks
Accepts up to 12 cable lines
1.5mm Mild Steel for added strength
Internal Steel cross-member supports for increased impact resistance
Compact size allows for installation in restricted spaces
Removeable lid for ease of termination / installation
Lockable for security
Fixings points to allow for installation on walls/risers, in ceilings, floor or under desk
Grey powder coated finish for humidity and temperature protection
Brush strips for easy cable entry/exit and debris free operation
Integral cable anchor points
Modular design allows user to mix and match desired connectivity i.e. 6x CAT6A STP & 6x LC Duplex OM4
Port identification

Distributors near you

More products in this product group:

Connector Colour	Beige (BGE)
Connector Type	SC Simplex
PART DESCRIPTION	ZTB12SCSBGXXXX/GY
Performance Category	Modular, Multimode
Product Family	Consolidation Points and Enclosures
Product Group	Modular Zone Termination Box
Short Description	12 Way Modular Zone Termination Box Loaded with 12 x SC Simplex Adaptors.
Technical Description	The Modular Zone Termination Box (ZTB) is a compact and robust internal consolidation point. The ZTB has been designed to work as part of a Zone Cabling topology which allows for more flexibility in regards to MAC’s within a structured cabling network. This modular version of the ZTB allows for the use of HellermannTyton keystone jacks and fibre adaptors, making it easier to configure each box to your bespoke requirements giving even greater flexibility. Users can choose to have the box loaded with CAT6 UTP HTC or GST keystone jacks, HTC CAT6A shielded jacks or LC duplex / SC simplex fibre adaptors.
Type	ZTB12SCSBGXXXX/GY
