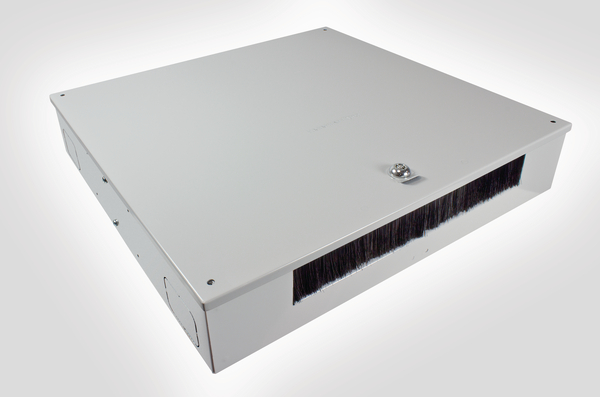

Lockable Zone Cabling Enclosure
Art.-No. 854-20027 | ZCE2UXXXXGY |  Details

Zone Cabling Enclosure.

    • 2U of rack space supporting 19” patch panels
    • Supports RapidNet panels, standard HellermannTyton copper and fibre panels and active equipment

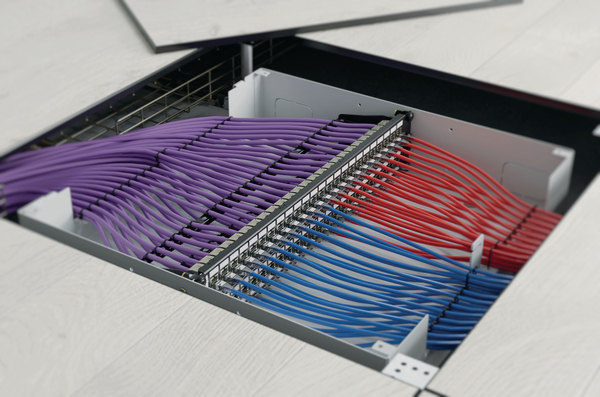

    • Installs below a single 600mm x 600mm floor or above a ceiling tile

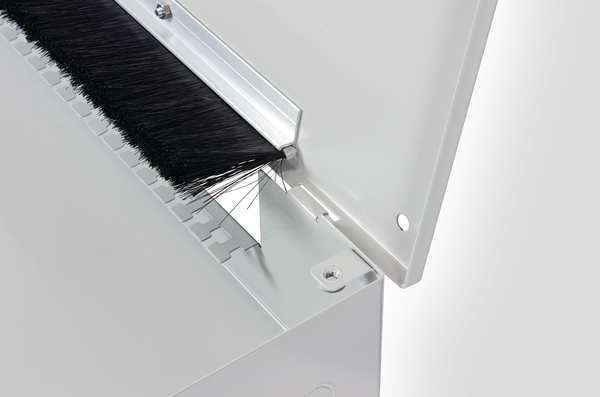

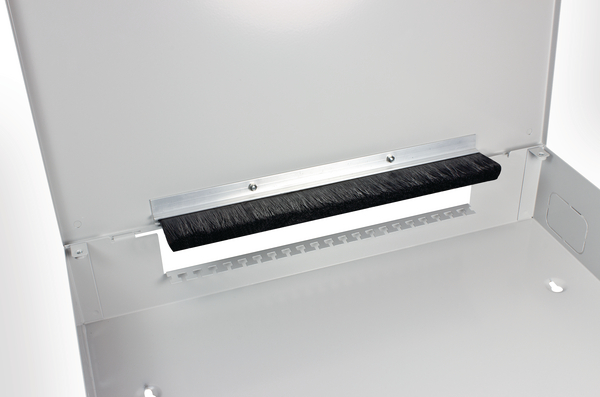

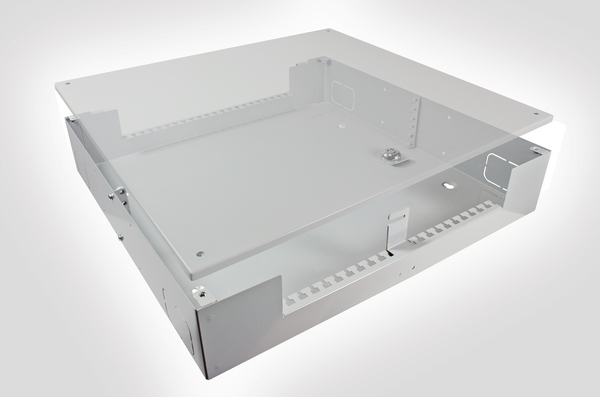

    • Hinged and removable lid and removable side covers for easy access and installation of brush panels

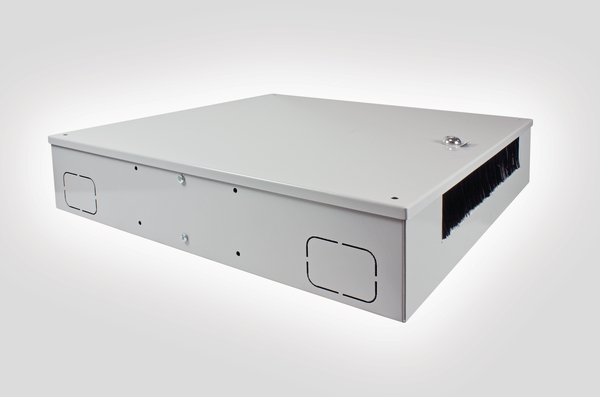

    • Lockable lid for secure access
    • Powder coated finish for temperature and humidity protection
    • Adjustable mounting ears allow for forward or backward pivot to suit the mounting post position
    • Provides additional patching away from the rack space
    Show more
    Add to watchlist
    Downloads CAD-Download
    Application The enclosure is the ideal solution for data centre or office applications where raised floors or suspended ceiling provide suitable hosting space.
    PART DESCRIPTION ZCE2UXXXXGY
    Pack Cont. 1pc.
    Package Content packed in box
    Product Family Consolidation Points and Enclosures
    Product Group Lockable Zone Cabling Enclosure
    Short Description Lockable Zone Cabling Enclosure

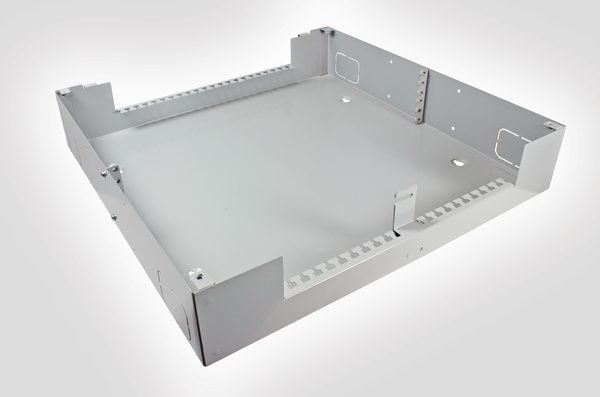

    Technical Description The Zone Cabling Enclosure from HellermannTyton provides up to 2U of patching space within the 600mm x 600mm area of a floor, ceiling tile or even on the wall. The zone cabling enclosure provides support for any standard 19” patch panels or active equipment as well as RapidNet panels for use with the pre-terminated cassette based solution. The zone cabling enclosure has a hinged and removable top access door along with removable covers and interchangeable brushes on two sides. The enclosure can be secured to raised floor pillars, concrete flooring or ceiling tiles and walls; making it extremely versatile in any mounted position. Internally, the zone cabling enclosure has front and rear cable management to support patch leads and manage bend radii.
    Type ZCE2UXXXXGY

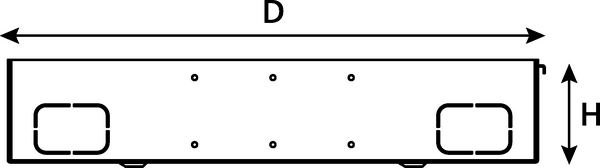

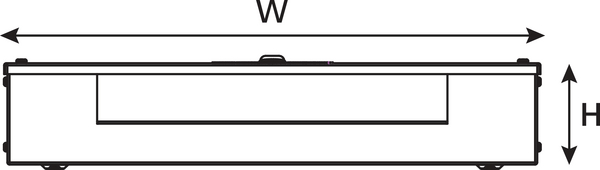

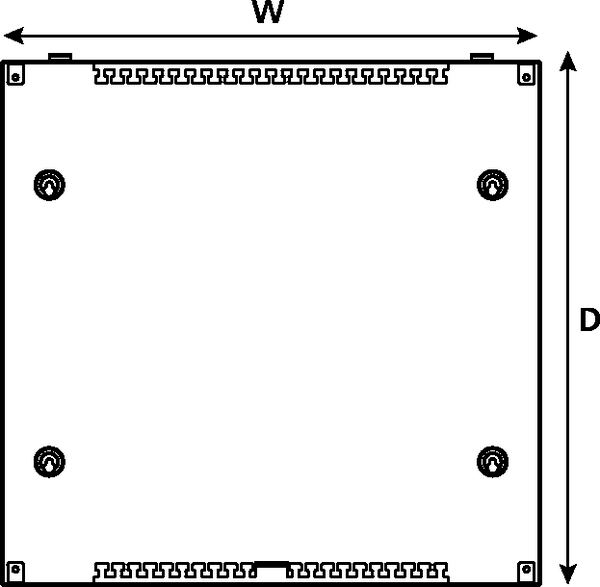

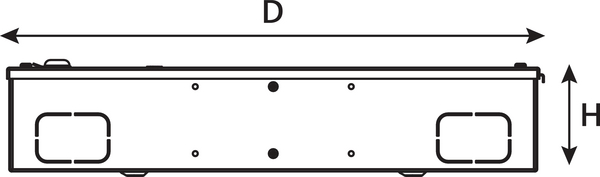

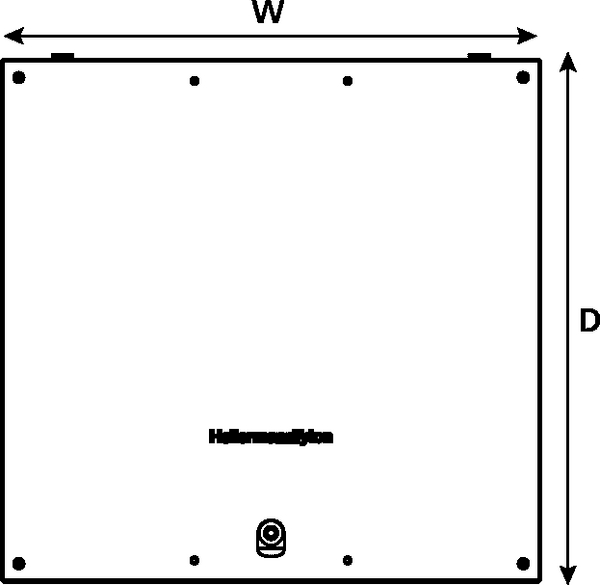

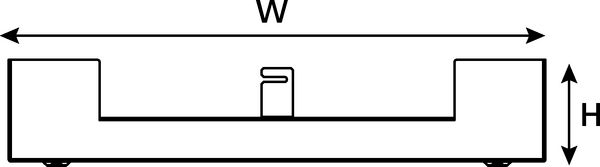

    Depth (D) 508mm
    Height (H) 99.8mm
    Width (W) 492mm
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Dimensions W x H x D 492 mm x 99.8 mm x 508 mm
    GTIN-13 / EAN 5022660162008
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
    Show all
