Integrated Routing Customer Access Box
Art.-No. 857-01071 | ENIR-MBU-CB |  Details

ENIR MBU Customer Access Unit

    • Maximum 48 LC Duplex/SC Simplex Adaptors
    • Angled Connector Panel
    • Positive fibre management to ensure consistent 30mm bend radii throughout
    • Cable tie fixing points
    • Label identification
    • Thumb lock removable cover
    Show more
    Add to watchlist
    Content Cable Management Kit
    Wall Mounting Kit
    Blanking Panel
    Brush Strip Kit
    PART DESCRIPTION ENIR-MBU-CB
    Product Family Fibre Optic Internal Enclosure
    Product Group Integrated Routing Customer Access Box

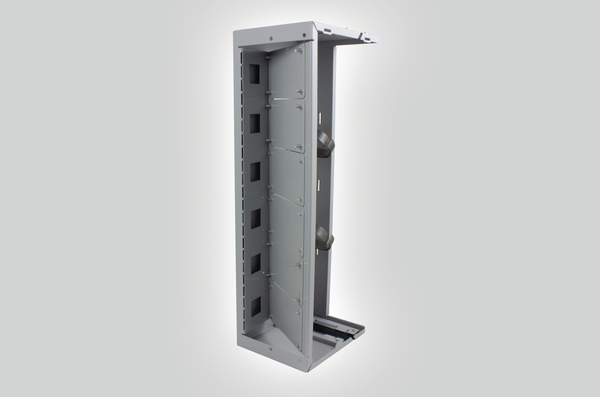

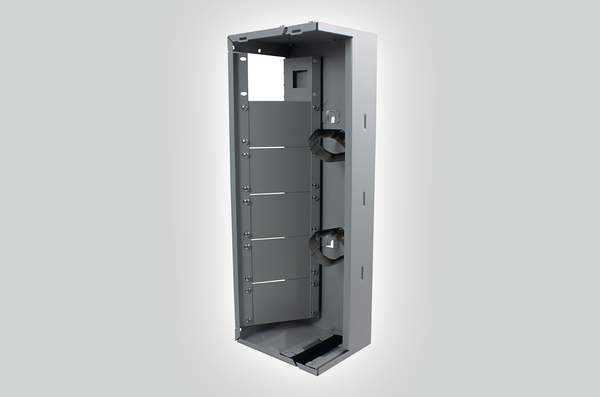

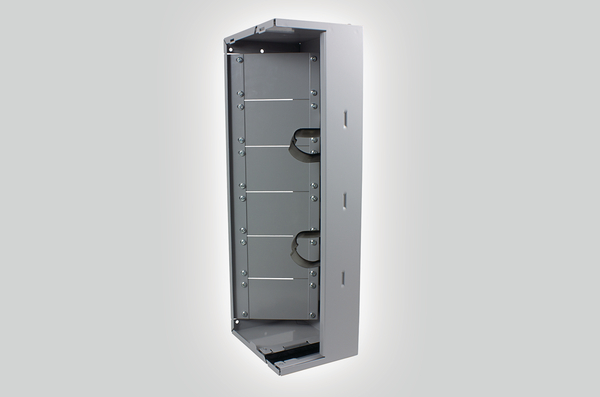

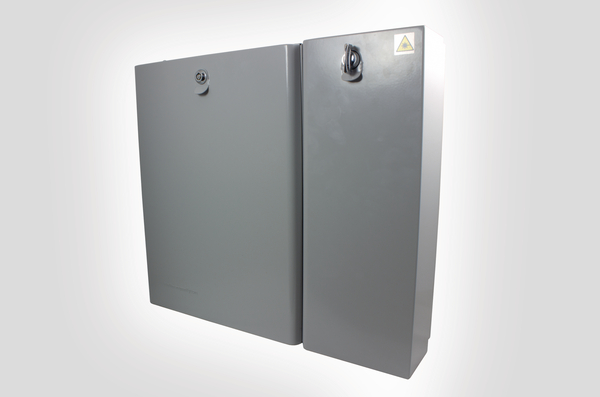

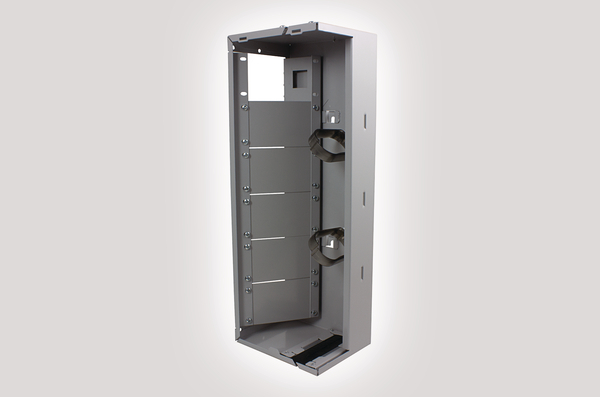

    Technical Description The Customer Access Box attaches to the side of the ENIR-MBU (Integrated Multi-Business Unit) providing a secure connectorised solution which separates the network operator side from the installer/end user side. The access unit can accommodate 6 connector plates providing a maximum of 48 LC Duplex/SC Simplex or 24 LC Simplex adaptors. The adaptor plates are presented at an angle for ease of installation, testing and cleaning whilst maintaining positive fibre cable management. The access unit has a thumb lock cover which can be removed to provide unrestricted access to the adaptors when unlocked.
    Type ENIR-MBU-CB

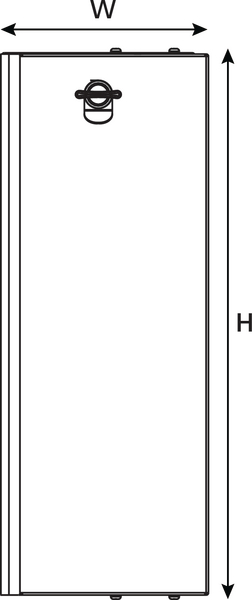

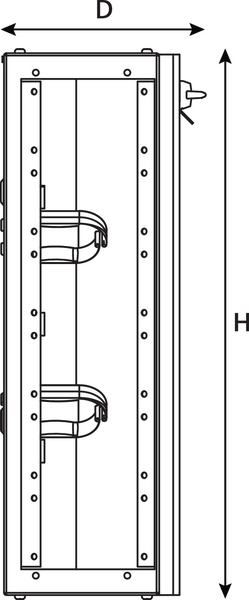

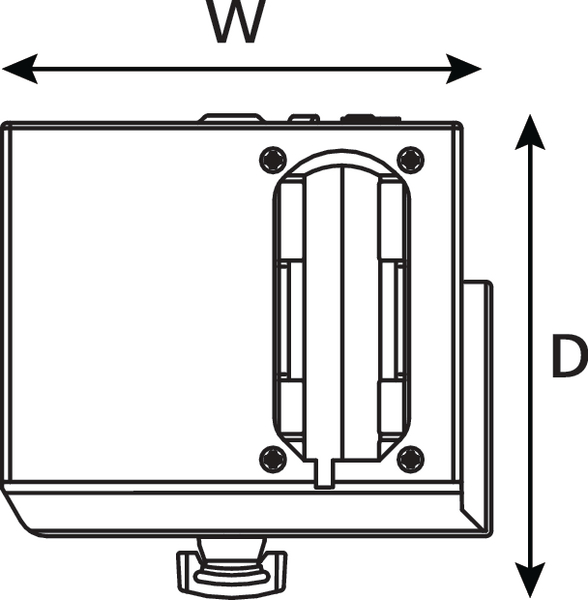

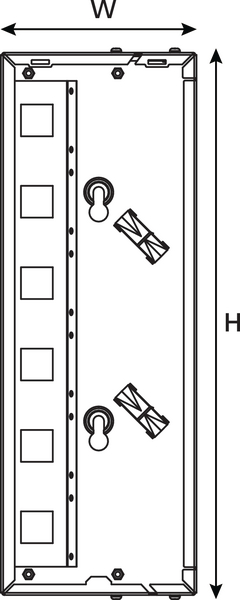

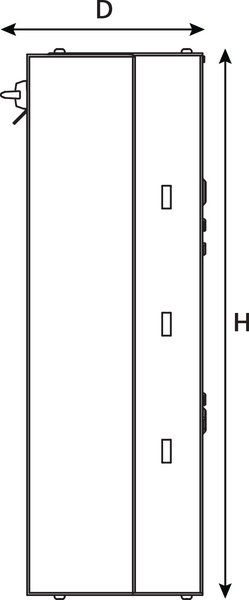

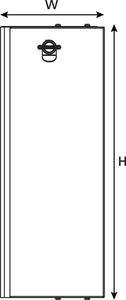

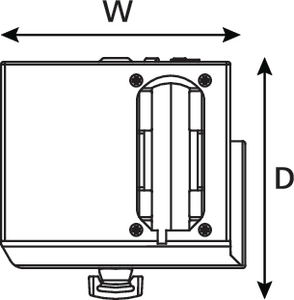

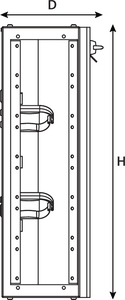

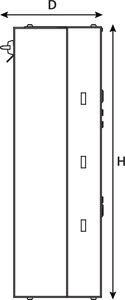

    Depth (D) 161mm
    Height (H) 433mm
    Width (W) 164mm
    Country of Origin GB
    GTIN-13 / EAN 5022660144547
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
