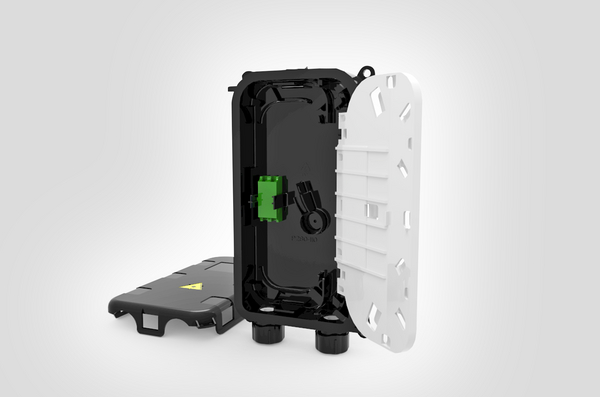

2 Port CCPXT with tray, 1 x LC APC duplex adaptor and 2 x LC APC 900μm pigtails
Art.-No. 857-01951 | CCPXT-X11XXX1AP0021X/BK |  Details

CCP 2 Port with tray and 1 LC APC adaptor

    • 2 Port Configuration
    • Supplied with 1 x LC APC Duplex Adaptor and 2 x LC APC 900μm Pigtails 1m
    • Separate splice tray with 3A splice bridge
    • Maximum 13 x 3A splices
    • Separate inbound/outbound access points
    • Rear Entry Port
    • Tamperproof lock mount
    • IP68/IK08 Rated
    Show more
    Add to watchlist
    Downloads CAD-Download
    Application The CCPXT has been designed to be used as an external building entry point. The enclosure can be wall/facade mounted or placed in to a buried chamber (located at the property boundary or just outside the point of access) providing an external building entry point and network test point.
    Cable ∅ max 6.0mm
    Cable ∅ min 4.0mm
    Colour Black (BK)
    Content 1 x 2 Port CCPXT Enclosure
    1 x Splice Tray with 3A Splice Bridge
    1 x LC APC Duplex Adaptor
    2 x LC APC 900μm Pigtails 1m
    2 x 4.0 - 6.0mm Cable Entry Seals
    Material Polycarbonate, UV-stabilised (PCUV)
    PART DESCRIPTION CCPXT-X11XXX1AP0021X/BK
    Package Content packed in box
    Port count 2
    Product Family Fibre Optic External Enclosure
    Product Group CCPXT - Customer Connection Point
    Short Description 2 Port CCPXT with tray, 1 x LC APC duplex adaptor and 2 x LC APC 900μm pigtails
    Splice Capacity 13
    Technical Description The 2 Port CCPXT is fitted with a splice tray with a 3A splice bridge (maximum 12 x 3A splices) and supplied with 1 x LC APC Duplex Adaptor and 2 x 1m pigtails. Each cable access point is sealed with a cable entry kit to maintain the IP68 rating. Internal fibre management features ensure that a 30mm minimum bend radius is maintained within the closure and provides storage capacity for any excess fibre. The base of the CCPXT has wall mounting points in each corner and the lid snaps in to place using lid retaining clips. The closure also has a tamperproof lock mount can be used to provide additional security if required.
    Type CCPXT-X11XXX1AP0021X/BK
    Depth (D) 28.5mm
    Height (H) 176mm
    Width (W) 94mm
    Country of Origin GB
    GTIN-13 / EAN 5022660173165
    Packaging 1 - Weight (kg) 0.12kg
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
