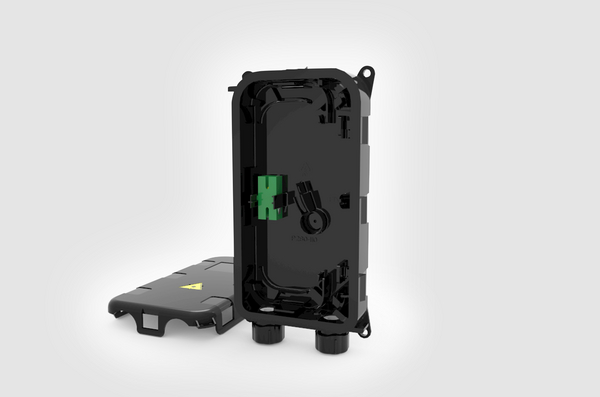

2 Port CCPXL with 1 x SC/APC simplex adaptor, 1 x SC/APC 900μm pigtail and breather membrane
Art.-No. 857-01884 | CCPXX-M11XXX1TP001/BK |  Details

CCP 2 Port open with 1 SC APC adaptor.

    • 2 Port Configuration
    • Supplied with 1 x SC APC Simplex Adaptor and 2 x SC/APC 900μm Pigtails 1m
    • Separate inbound/outbound access points
    • Breathable embrane
    • Rear Entry Port
    • Tamperproof lock mount
    • IP68/IK08 Rated
    Show more
    Add to watchlist
    Downloads CAD-Download
    Application The CCPXL has been designed to be used as an external building entry point. The enclosure can be wall/facade mounted or placed in to a buried chamber (located at the property boundary or just outside the point of access) providing an external building entry point and network test point.
    Cable ∅ max 6.0mm
    Cable ∅ min 4.0mm
    Colour Black (BK)
    Content 1 x CCPXL Enclosure
    1 x SC/APC Simplex Adaptor
    1 x SC/APC 900μm Pigtail 1m
    2 x 4.0 - 6.0mm Cable Entry Seals
    Gortex Breather Membrane
    Material Polycarbonate, UV-stabilised (PCUV)
    PART DESCRIPTION CCPXX-M11XXX1TP001/BK
    Package Content packed in box
    Port count 2
    Product Family Fibre Optic External Enclosure
    Product Group CCPXL - Customer Connection Point
    Short Description 2 Port CCPXL with 1 x SC/APC simplex adaptor, 1 x SC/APC 900μm pigtail and breather membrane
    Splice Capacity 0
    Technical Description The 2 Port CCPXL is supplied with 1 x SC APC Simplex Adaptor and 1 x 1m pigtail. Each cable access point is sealed with a cable entry kit to manage cables from 4.0mm to 6mm and to maintain the IP68 rating. A gortex breather membrane is fitted to the lid to prevent condensation forming in the base of the closure due to temperature fluctuations. Internal fibre management features ensure that a 30mm minimum bend radius is maintained within the closure and provides storage capacity for any excess fibre. The base of the CCPXL has wall mounting points in each corner and the lid snaps in to place using lid retaining clips. The closure also has a tamperproof lock mount can be used provides additional security if required.
    Type CCPXX-M11XXX1TP001/BK
    Depth (D) 28.5mm
    Height (H) 176mm
    Width (W) 94mm
    Country of Origin GB
    GTIN-13 / EAN 5022660172830
    Packaging 1 - Weight (kg) 0.12kg
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
