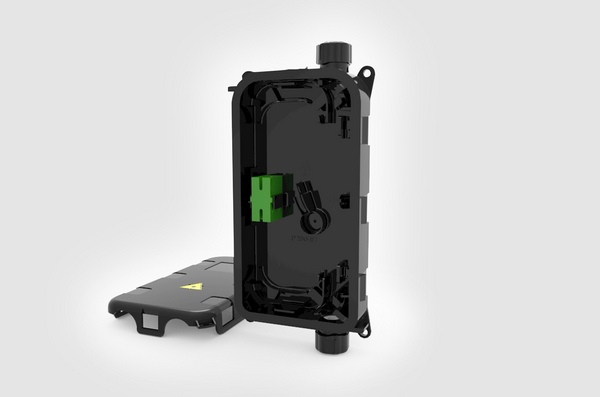

Application	The CCPXL 2 Port Inline has been designed to be used as an external building entry point. The enclosure can be wall/facade mounted or placed in to a buried chamber (located at the property boundary or just outside the point of access) providing an external building entry point and network test point.
Cable ∅ max	6.0mm
Cable ∅ min	4.0mm
Colour	Black (BK)
Content	1 x 2 Port Inline CCPXL Enclosure 2 x SC/APC Simplex Adaptor 2 x SC/APC 900μm Pigtails 1m 2 x 4.0 - 6.0mm Cable Entry Seals
Material	Polycarbonate, UV-stabilised (PCUV)
PART DESCRIPTION	CCPXX-X1X1XX2TP002/BK
Package Content packed in	box
Port count	2
Product Family	Fibre Optic External Enclosure
Product Group	CCPXL - Customer Connection Point
Short Description	2 Inline Port CCPXL with 2 x SC/APC simplex adaptors and 2 x SC/APC 900μm pigtails
Splice Capacity	0
Technical Description	The 2 Port Inline CCPXL is supplied with 2 x SC APC Simplex Adaptors and 2 x 1m pigtails. Each cable access point is sealed with a cable entry kit to manage cables from 4.0mm to 6mm and to maintain the IP68 rating. Internal fibre management features ensure that a 30mm minimum bend radius is maintained within the closure and provides storage capacity for any excess fibre. The base of the CCPXL has wall mounting points in each corner and the lid snaps in to place using lid retaining clips. The closure also has a tamperproof lock mount can be used provides additional security if required.
Type	CCPXX-X1X1XX2TP002/BK
