CWB in Black with 1 x LC/APC DX Adaptor
Art.-No. 857-02421 | CWB-BK |  Details

Customer Wall Box.

    • Maximum 4 Customer Connections
    • 6 Entry/Exit Ports at the base max. 8mm
    • 2 Entry/Exit Ports at the rear max. 6.4mm
    • Accommodation for 2 LC Duplex/SC Simplex Adaptors
    • Maximum 4 x 3A splices
    • IP54
    • Storage for excess fibre
    • Tamperproof
    Show more
    Add to watchlist
    Downloads CAD-Download
    Application The Customer Wall Box (CWB) has been designed as a Building Entry Point (BEP) to provide a fibre termination and demarcation point external to the connected premise in a Fibre to the Home (FTTH) network.
    Colour Black (BK)
    Content CWB Enclosure - Black
    Fibre Management Tray

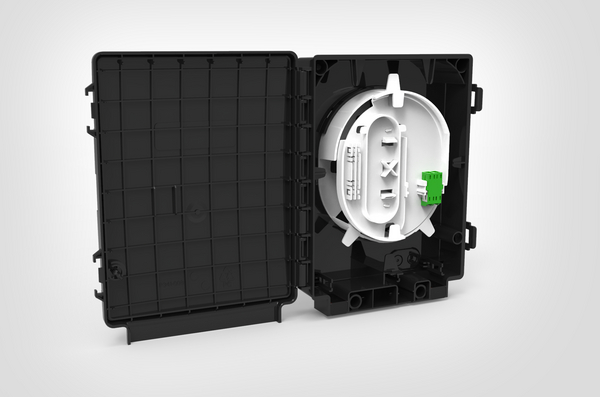

    1 x LC/APC DX Adaptor
    2 x 3.0-8.0MM Entry/Exit Port Seals
    2 x 6.4mm grommets
    Wall Mounting Kit
    Cable Ties Red
    Material Polycarbonate, UV-stabilised (PCUV)
    PART DESCRIPTION CWB-BK
    Pack Cont. 48
    Package Content packed in box
    Product Family Fibre Optic External Enclosure
    Product Group CWB - Customer Wall Box
    Short Description CWB in Black with 1 x LC/APC DX Adaptor
    Splice Capacity 4

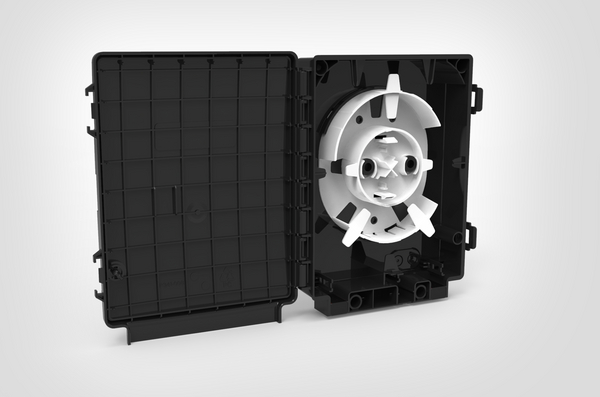

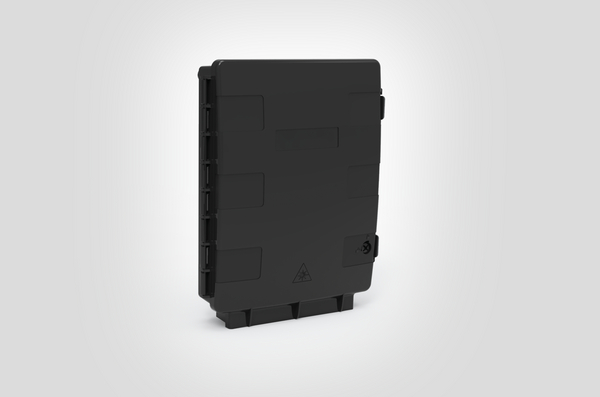

    Technical Description The CWB is an IP54/IK07 rated enclosure manufactured from UV stable black polycarbonate. The enclosure is fitted with a tamper-proof lock and a 55 x 15mm inset position on the front cover that allows for a customer logo to be moulded. The closure has a total of 8 entry points, 6 in the bottom and 2 in the rear, which will manage cable/ducts up to a maximum diameter of 8mm. Mechanical fixing is provided to secure all incoming/outgoing cables/blown fibre ducts and to provide strain relief where necessary. A fibre storage module allows for the management and storage of up to 30m of a blowable fibre unit (nominal diameter 1.2mm) or 10m of aerial drop cable (nominal diameter 3mm). A dedicated customer drop tray houses a maximum of 2 x LC Duplex or SC Simplex adaptors (1 x LC/APC DX Adaptor provided) and has been specifically moulded to secure 3A splices. Two types of seals are available for different cable OD (3.0-8.0mm seal and 10.0mm seal).
    Type CWB-BK
    Depth (D) 44mm
    Height (H) 198mm
    Width (W) 154mm
    Country of Origin CN
    GTIN-13 / EAN 5022660182938
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
