03/12/2024

ICB with 3A Splice Bridge only with Max Capacity of 1 SC SX or LC DX Adaptor
Art.-No. 857-02845 | ICB-SXXXX/WH |  Details

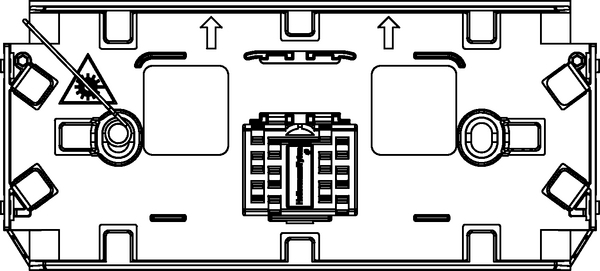

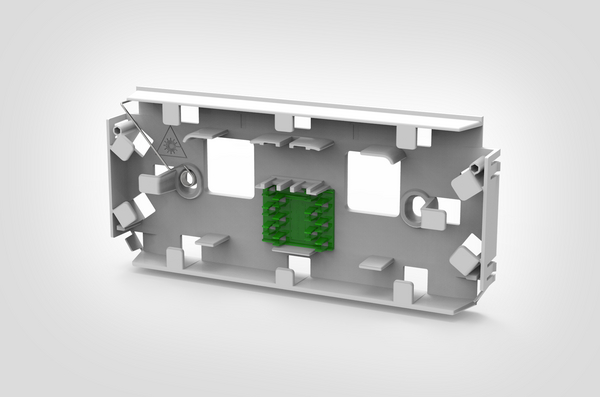

ICB shown with 1 x 3A bridge.

    • Maximum of 4 customer connections
    • Up to 12 x 3A or ANT splices
    • Small, low profile design
    • Positive fibre management
    • 4 corner cable access points
    • Through the wall capability
    • IP20 and IK07 rating
    • Clipped on cover
    • UL94 V0 rating
    • Multi operator version
    Show more
    Add to watchlist
    Downloads
    Content 1 x ICB with Single Insert Base
    1 x 3A Splice Bridge
    1 x QR code instruction Label
    1 x Wall Fixing Kit
    1 x Cable Retention Fire Clip
    Material Acrylonitrile Butadiene Styrene (ABS94V-0), Acrylonitrile Butadiene Styrene alloyed with Polyamide (PA/ABS), Acrylonitrile Butadiene Styrene, UV-stabilised (ABSUV), Acrylonitrile Butadiene Styrene (ABS), Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS)
    PART DESCRIPTION ICB-SXXXX/WH
    Product Family Fibre Optic Internal Enclosure
    Product Group ICB – Internal Corridor Box
    Short Description ICB with 3A Splice Bridge only with Max Capacity of 1 SC SX or LC DX Adaptor
    Splice Capacity 12
    Technical Description The Internal Corridor Box provides a customer connection point within an MDU environment. The ICB allows a multi-fibre cable with a maximum diameter of 2.8mm to be routed along a corridor. The midspan capability allows for a single fibre to be dropped off at each customer location allowing the remainder of the cable to feed additional customer connections. Up to 2m of cable can be stored in the enclosure (or 4m if the cable jacket and aramid yarn are removed), allowing friendly fibre preparation at a nominal working height of 1m. The ICB is designed for horizontal or vertical installation with 4 entry/exit ports (2 at the top and 2 at the bottom of the base). This allows the corridor cable to pass through (inline) from the top or from the bottom or to enter and exit via one of the ports. The box incorporates positive fibre management which ensures the fibres adhere to the minimum bend radius. A fire-resistant metal clip is fitted inside to comply with the current IET Wiring Regulations. The box configured for one adaptor and a splice bridge allows cable replacement in case of installation damage.
    Type ICB-SXXXX/WH
    Depth (D) 21mm
    Height (H) 66mm
    Width (W) 144mm
    Country of Origin GB
    GTIN-13 / EAN 4031026762920
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
