MCCE with 2 LC DX APC Adaptors
Art.-No. 857-02070 | MCCE-T12AP11X |  Details

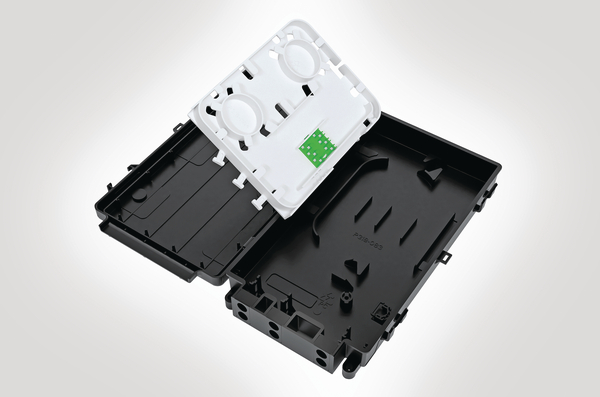

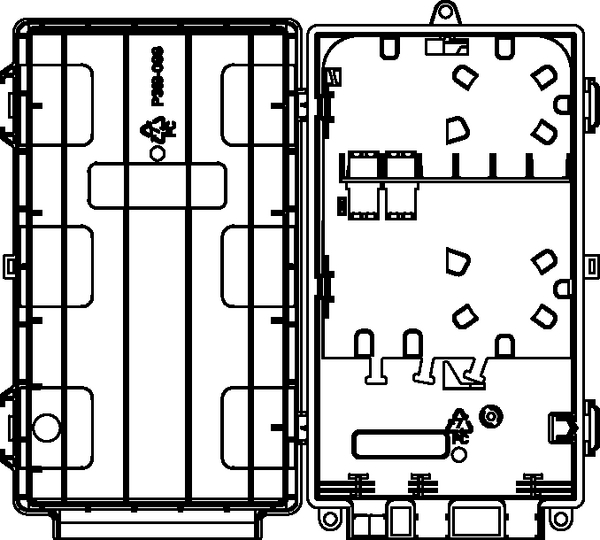

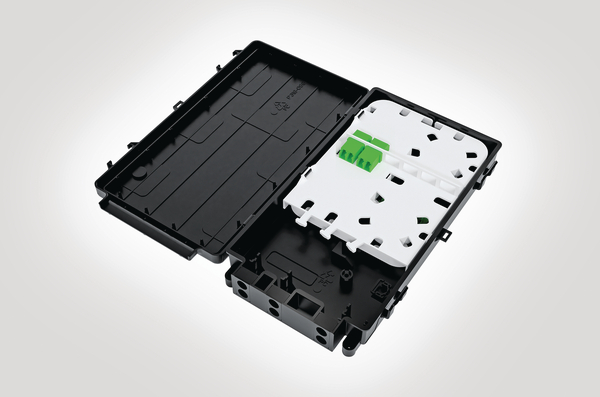

Internal view of MCCE.

    • 4 Customer Connections (maximum capacity 12)
    • 2 x LC APC Duplex Adaptors
    • 4 x 1m pigtails
    • 6 x 3A fibre splices
    • Positive fibre management (30mm minimum bend radius)
    • IP54 rating
    • Low Profile
    • Tamper-proof
    Show more
    Add to watchlist
    Downloads CAD-Download
    Cable ∅ max 8.0mm
    Cable ∅ min 6.0mm
    Colour Black (BK)
    Content 2 x LC APC Adaptors
    4 x 1m Pigtails
    Fibre Management Tray
    1 x 3A Splice Bridge
    Cable Entry/Exit Kit 6 - 8mm
    Mechanical Fixing Kit
    Wall Mounting Kit
    Laser Label
    Material Polycarbonate, UV-stabilised (PCUV)
    PART DESCRIPTION MCCE-T12AP11X
    Package Content packed in box
    Product Family Fibre Optic External Enclosure
    Product Group MCCE - Multi Customer Connections Enclosure
    Short Description MCCE with 2 LC DX APC Adaptors
    Splice Capacity 6
    Technical Description The Multi Customer Connection Enclosure (MCCE) has been designed as a Building Entry Point (BEP) to provide a fibre termination and network demarcation point external to the connected premise in a Fibre to the Home (FTTH) network. In addition to providing an external test point the enclosure can also accommodate up to 12 customer fibre connections. The MCCE has an IP54 sealing performance with up to 6 entry/exit ports at the bottom of the enclosure which is suitable for cables or ducts up to a maximum diameter of 8mm. A loop through facility allows for single fibre elements to be removed and spliced whilst the remaining fibres can be fed on to the next connection point. Mechanical fixing is provided to secure all incoming/outgoing cables/blown fibre ducts and to provide strain relief where necessary. Internal positive fibre management and fibre retention clips maintain a minimum 30mm bend radius throughout. The MCCE is supplied with 2 x LC duplex adaptors and 4 x 1m pigtails and has features to secure a maximum of 6 fibre splices. The lid is hinged allowing quick and clear access to the internal fibre for splicing and termination and the lid can be replaced if damaged.
    Type MCCE-T12AP11X
    Depth (D) 37mm
    Height (H) 233mm
    Width (W) 135mm
    Country of Origin GB
    GTIN-13 / EAN 5022660175022
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
