MCCE with unloaded SC SX Tray
Art.-No. 857-02076 | MCCE-T1XXX21X |  Details

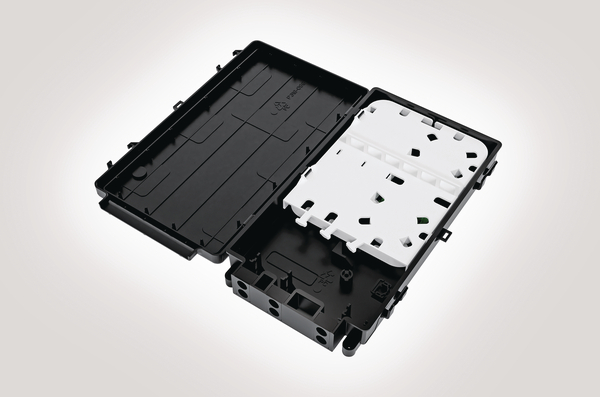

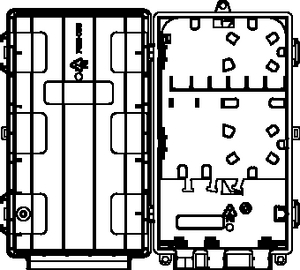

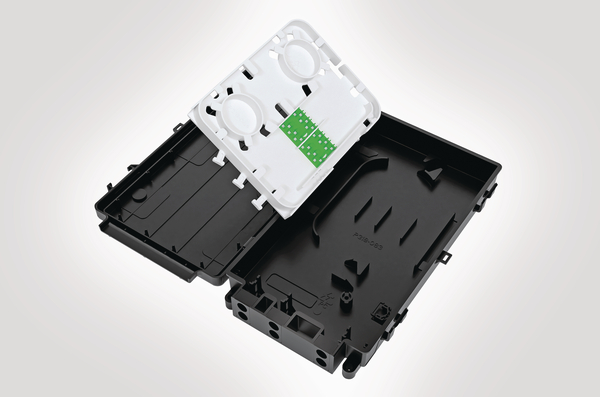

Internal view of MCCE.

    • Capacity for up to 12 Customer Connections
    • 12 x 3A fibre splices
    • Positive fibre management (30mm minimum bend radius)
    • IP54 rating
    • Low Profile
    • Tamper-proof
    Show more
    Add to watchlist
    Downloads CAD-Download
    Cable ∅ max 8.0mm
    Cable ∅ min 6.0mm
    Colour Black (BK)
    Content Fibre Management Trays
    3 x 3A Splice Bridges
    Cable Entry/Exit Kit 6 - 8mm
    Mechanical Fixing Kit
    Wall Mounting Kit
    Laser Label
    Material Polycarbonate, UV-stabilised (PCUV)
    PART DESCRIPTION MCCE-T1XXX21X
    Package Content packed in box
    Product Family Fibre Optic External Enclosure
    Product Group MCCE - Multi Customer Connections Enclosure
    Short Description MCCE with unloaded SC SX Tray
    Splice Capacity 12
    Technical Description The Multi Customer Connection Enclosure (MCCE) is a Building Entry Point (BEP) enclosure which offers the flexibility of managing both Point to Point (P2P) or Point to Many Point (P2MP) network configurations. Supplied with or fibre management trays which support a maximum 6 x SC Simplex or LC Duplex adaptors and a maximum of up to 12 3A splices. The closure is manufactured from UV stable ABS with a hinged lid which locks in the open position to allow for quick and clear access to the internal fibre. The closure has 6 entry/exit ports at the bottom of the closure which are suitable for cables and ducts up to a maximum diameter of 8mm. A loop through facility allows for single fibre elements to be removed and spliced whilst the remaining fibres can be fed on to the next connection point and a splice capacity for up to 12 3A splices. Mechanical fixing is provided to secure all incoming/outgoing cables/blown fibre ducts and to provide strain relief where necessary.
    Type MCCE-T1XXX21X

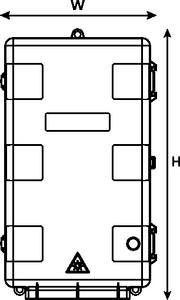

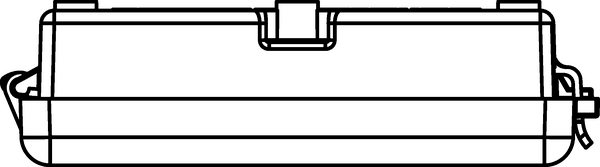

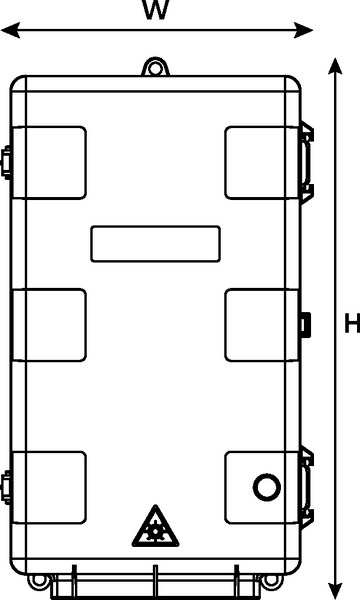

    Depth (D) 37mm
    Height (H) 233mm
    Width (W) 135mm
    Country of Origin GB
    GTIN-13 / EAN 5022660175084
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
