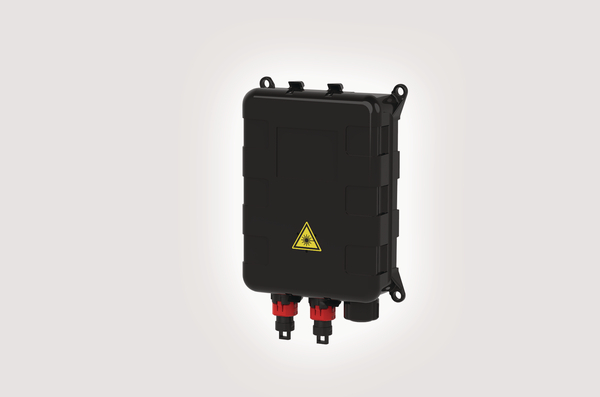

MCDN with 1 x IP9 ports
Art.-No. 857-02725 | MCDN-1A-1-SN |  Details

MCDN 2 X IP9 + 1 Bayonet (closed)

    Add to watchlist
    Downloads
    Colour Black (BK)
    Content MCDN -1A (2 x IP9 + 1 x Bayonet Port)
    3A Splice Tray x 1
    IP9 SN Adaptor x 2
    4.0 - 6.0mm Cable/Duct Seal x 1
    Material Polycarbonate, UV-stabilised (PCUV)
    PART DESCRIPTION MCDN-1A-1-SN
    Port count 3
    Product Family Fibre Optic External Enclosure
    Product Group MCDN - Micro Compact Distribution Node
    Qty Trays 1
    Short Description MCDN with 1 x IP9 ports

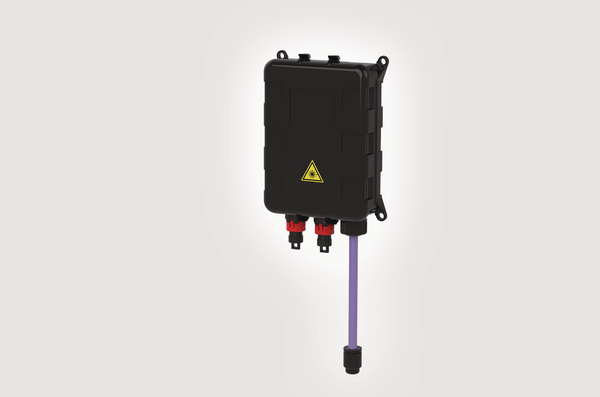

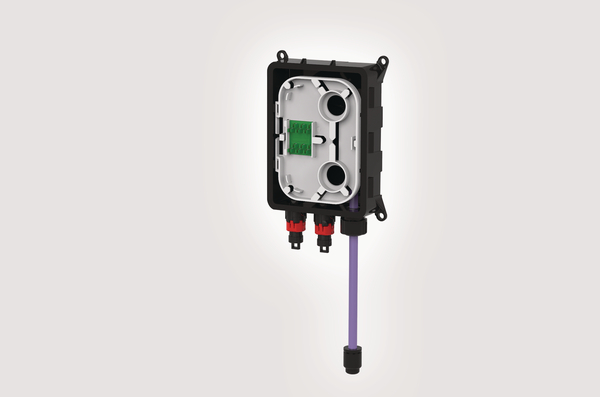

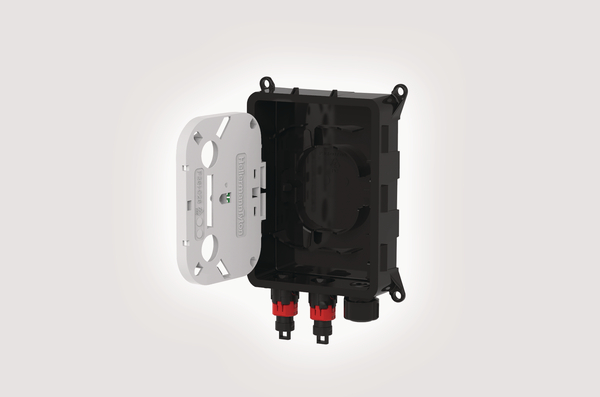

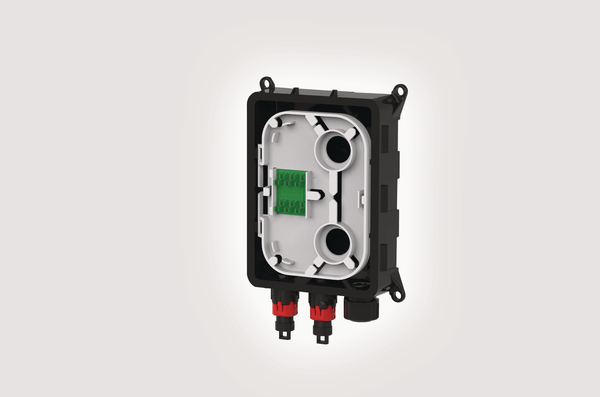

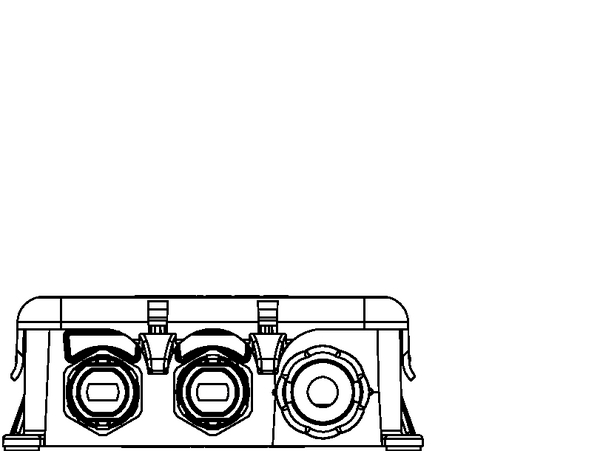

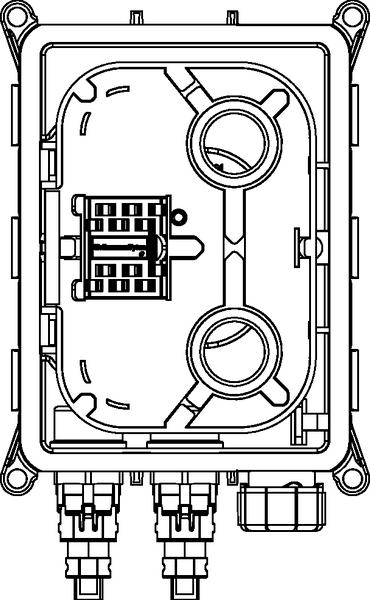

    Technical Description The MDCN-1A is a compact hardened connector enclosure which offers IP68 environmental protection. The enclosure has two IP9 ports and a single compression port at the base of the unit. Both IP9 ports are fitted with a SN duplex adaptor to allow for BiDi or duplex connections. The incoming compression port is supplied with 4.0 – 6.0mm cable/duct seal. The enclosure is supplied with a fibre splice tray which will manage a maximum of 12 x 3A 60mm splices for use where pre-connectorised fibre units cannot be deployed and the base has moulded retaining clips for improved fibre management. The enclosure is manufactured from UV stable PC/ABS and is supplied with a Gortex breather eliminating any internal moisture build up.
    Type MCDN-1A-1-SN

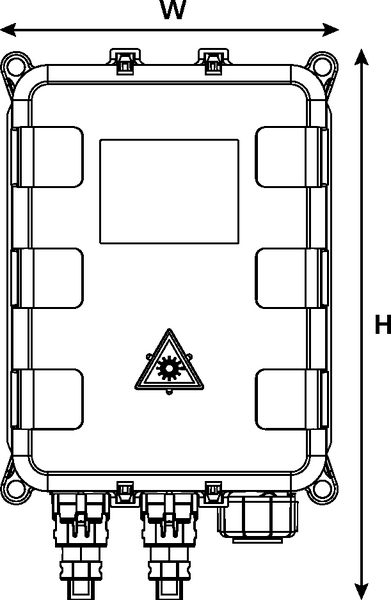

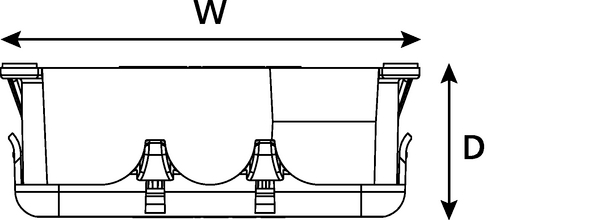

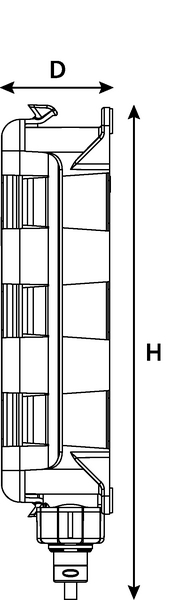

    Depth (D) 35mm
    Height (H) 151mm
    Width (W) 97mm
    Country of Origin CN
    GTIN-13 / EAN 5022660193576
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
    Show all
