MCDN with 4 x IP9 ports
Art.-No. 857-02728 | MCDN-2D-1-SN |  Details

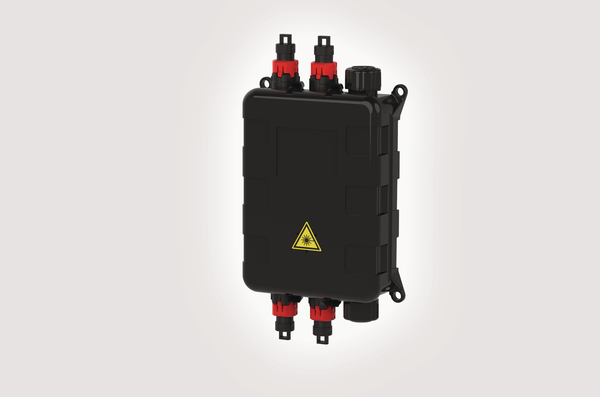

MCDN 4 X IP9 + 2 Bayonet (closed)

    • 4 x IP9 SN Duplex Ports with tethered dust caps
    • Compression Port supplied with 2 x 4.0 – 6.0mm seal
    • IP68 sealing on all ports

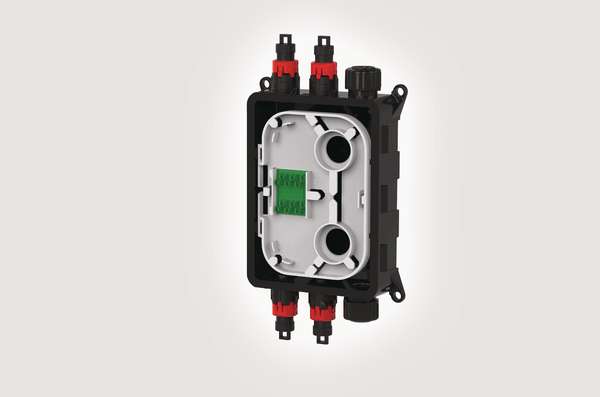

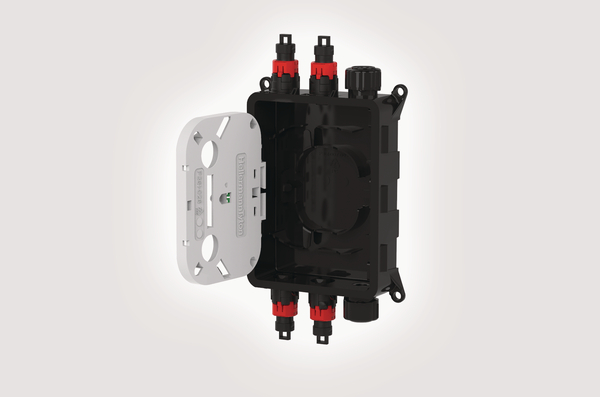

    • Splice tray for maximum of 12 x 3A fibre splices
    • Gortex breather to prevent moisture condensation
    • Cable retaining clips are incorporated into the box
    • Two slotted fixings for perfect horizontal alignment
    • Enforces IEC 6079-2-50 B6_a2 (G.657.A2) fibre minimum bend radius of 7.5mm
    • Manufactured from UV stable PC/ABS
    Show more
    Add to watchlist
    Downloads
    Colour Black (BK)
    Content MCDN-2D (4 x IP9 + 2 x Bayonet Port)
    3A Splice Tray x 1
    IP9 SN Adaptor x 4
    4.0 - 6.0mm Cable/Duct Seal x 2
    Material Polycarbonate, UV-stabilised (PCUV)
    PART DESCRIPTION MCDN-2D-1-SN
    Port count 6
    Product Family Fibre Optic External Enclosure
    Product Group MCDN - Micro Compact Distribution Node
    Qty Trays 1
    Short Description MCDN with 4 x IP9 ports

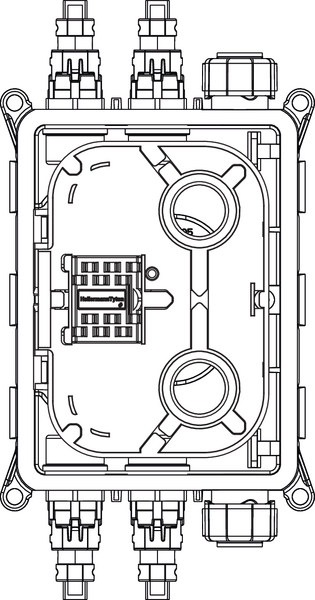

    Technical Description The MDCN-2D is a compact hardened connector enclosure which offers IP68 environmental protection. The enclosure has four IP9 ports and two compression ports at the base of the unit. The IP9 ports are fitted with a SN duplex adaptor to allow for BiDi or duplex connections. The incoming compression ports are supplied with 4.0 – 6.0mm cable/duct seals. The enclosure is supplied with a fibre splice tray which will manage a maximum of 12 x 3A 60mm splices for use where pre-connectorised fibre units cannot be deployed and the base has moulded retaining clips for improved fibre management. The enclosure is manufactured from UV stable PC/ABS and is supplied with a Gortex breather eliminating any internal moisture build up.
    Type MCDN-2D-1-SN

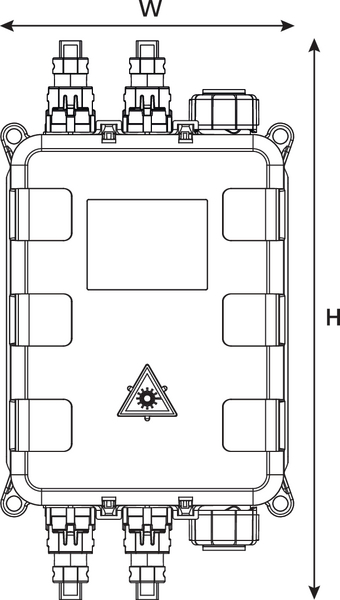

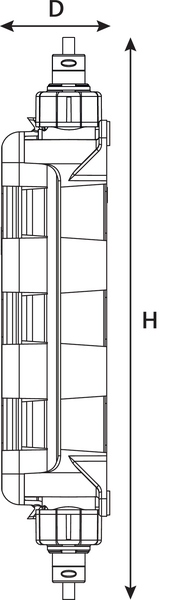

    Depth (D) 35mm
    Height (H) 151mm
    Width (W) 97mm
    Country of Origin CN
    GTIN-13 / EAN 5022660193620
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
    Show all
