23/11/2024

MCDN with 6 x IP9 ports
Art.-No. 857-02731 | MCDN-XG-X-SN |  Details

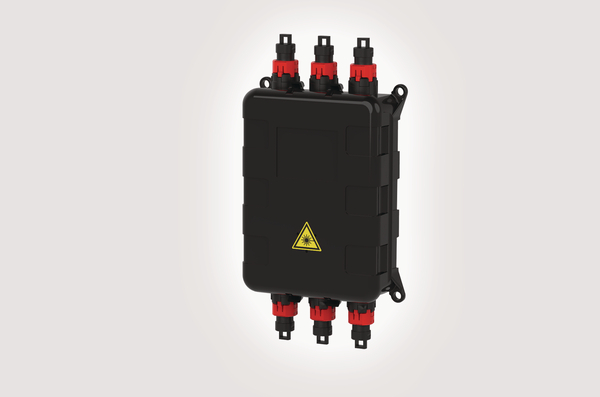

MCDN 6 X IP9 (closed)

    Add to watchlist
    Downloads
    Colour Black (BK)
    Content MCDN-XG (6 x IP9 Ports)
    3A Splice Tray x 1
    IP9 SN Adaptor x 6
    Material Polycarbonate, UV-stabilised (PCUV)
    PART DESCRIPTION MCDN-XG-X-SN
    Product Family Fibre Optic External Enclosure
    Product Group MCDN - Micro Compact Distribution Node
    Short Description MCDN with 6 x IP9 ports

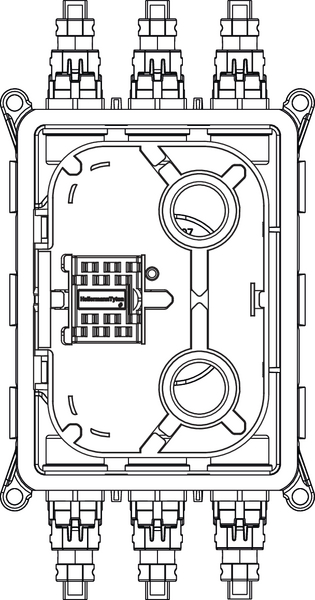

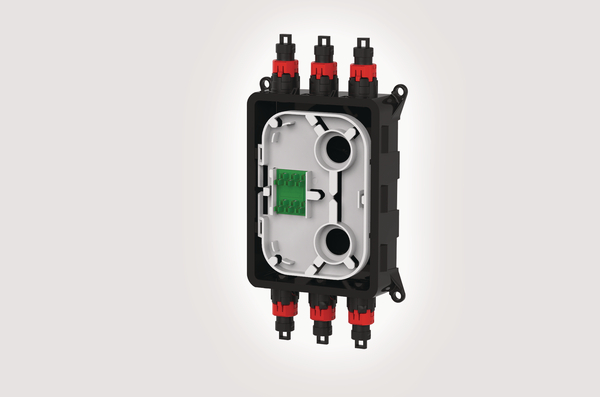

    Technical Description The MDCN-XG is a compact hardened connector enclosure which offers IP68 environmental protection. The enclosure has six IP9 ports at the base of the unit. The IP9 ports are fitted with a SN duplex adaptor to allow for BiDi or duplex connections. The enclosure is supplied with a fibre splice tray which will manage a maximum of 12 x 3A 60mm splices for use where pre-connectorised fibre units cannot be deployed and the base has moulded retaining clips for improved fibre management. The enclosure is manufactured from UV stable PC/ABS and is supplied with a Gortex breather eliminating any internal moisture build up.
    Type MCDN-XG-X-SN

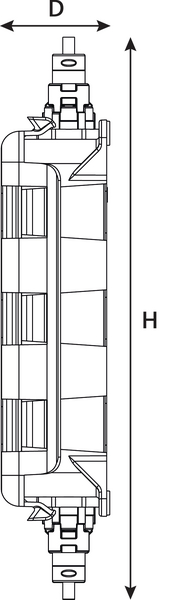

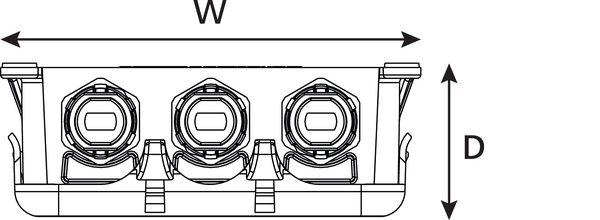

    Depth (D) 35mm

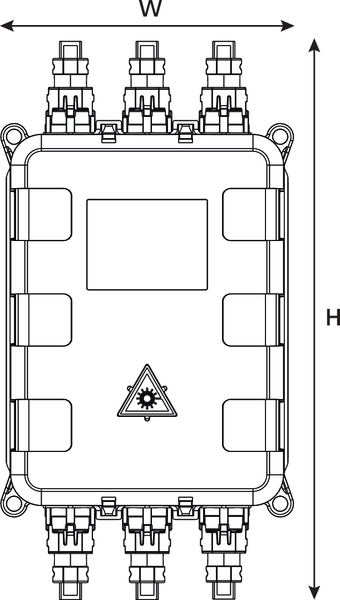

    Height (H) 151mm
    Width (W) 97mm
    Country of Origin CN
    GTIN-13 / EAN 5022660193644
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
    Show all
