MDU S5 with SC-B trays
Art.-No. 857-01495 | MDU-S5-LLXN |  Details

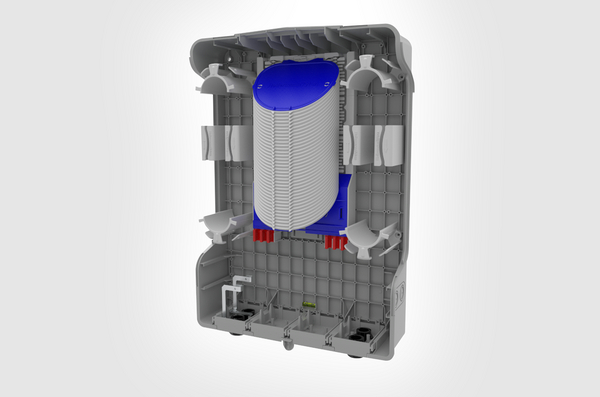

Internal view of the MDU - S5 Splice Enclosure.

    • Maximum 432 Fibre Splices
    • IR Fibre Management System
    • 18 SE/36 SC-B or 9 x 900µm Trays
    • Multiple Loop Storage Management options
    • 8 Dual Input/Output positions
    • Strength Member Anchor
    • In-built spirit level
    • IP54/IK08
    • UV Stable
    • V0 Rating
    Show more
    Add to watchlist
    Downloads CAD-Download
    Application Designed for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Point (P2P) or Point to Multi Point (P2MP) with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
    Colour Grey RAL 7035 (RAL7035)
    Content S5 Enclosure
    250µm IR Fibre Management System
    36 SC-B Trays
    2 Loop Storage Managers
    4 x Entry/Exit Port Blanks
    Strength Member Anchor
    In-built spirit level
    Fibre Picker
    Wall Mounting Kit
    Red and Green Polyspiral Tubing(2M)
    Red and Green Velcro Ties(5)
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION MDU-S5-LLXN
    Pack Cont. 1pc.
    Package Content packed in EA
    Port count 8
    Product Family Fibre Optic External/Internal Enclosure
    Product Group S5 Series MDU/MBU Enclosures
    Qty Trays 36
    Short Description MDU S5 with SC-B trays
    Splice Capacity 432
    Technical Description The S5 enclosure is configured with the HellermannTyton 250µm IR Management System. The management system is mounted on an aluminium backplane which accommodates 36 SC-B trays giving a maximum of 432 3A fibre splices. The position of the fibre management system allows for easy access for the routing of fibre on to the trays. The trays and fibre optic routing modules are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide the fibre elements on to the IR system; the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre retaining block and tray retaining clips are coloured red to aid in identification if they are dropped. Loop storage management for both incoming and outgoing cables is provided by lateral cable managers and loop storage bobbins located on either side of the fibre management trays. The enclosure is 568 x 375 x 165mm (H x W x D) and manufactured in light grey (RAL 7035), UV stable ABS (Acrylonitrile Butadiene Styrene) and has an IP54, IK08 and V0 rating. Designed with 8 dual input/output ports, 4 across the bottom, 2 on the top and 2 on each side, each port will accommodate a 20 or 25mm cable gland. A 100 x 25mm inset position on the front cover allows for a customer logo to be moulded in to the enclosure.
    Type MDU-S5-LLXN
    Type of Tray IR SC-B
    Variant Indoor/Outdoor FTTx Enclosures

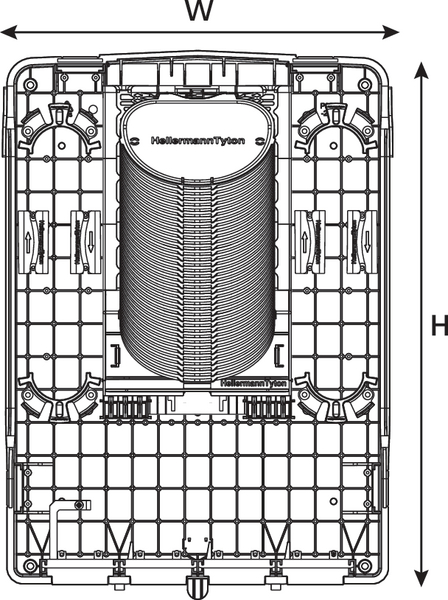

    Depth (D) 165mm
    Height (H) 568mm
    Width (W) 375mm
    Hazardous Goods No
    IP-Rating IP54
    Country of Origin GB
    Customs Number 85176200
    GTIN-13 / EAN 5022660164309
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
    UNSPSC Key 43223338
