03/12/2024

Unloaded MDU S5
Art.-No. 857-01493 | MDU-S5 |  Details

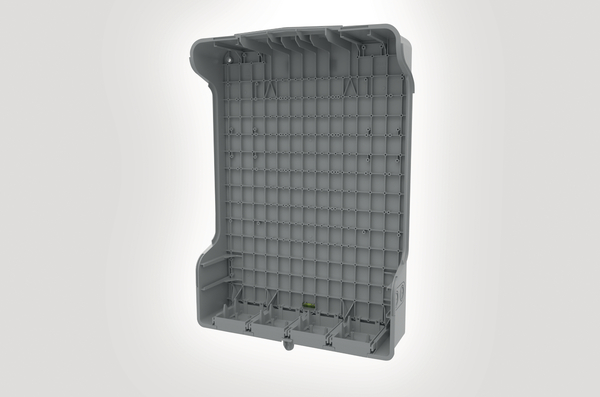

Internal view of the MDU - S5 Enclosure.

    • 8 Dual Input/Output Ports
    • Horizontal/Vertical Lay Through Capability
    • Suitable for use with 250µm and 900µm IR Systems
    • Inset position for Customer Logo
    • IP54/IK08
    • UV Stable
    • V0 Rating
    Show more
    Package size
    Add to watchlist
    Downloads CAD-Download
    Application Designed for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Point (P2P) or Point to Multi Point (P2MP) with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
    Colour Grey RAL 7035 (RAL7035)
    Content S5 Enclosure
    4 x Entry/Exit Port Blanks
    In-built spirit level
    Fibre Picker
    Wall Mounting Kit
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION MDU-S5
    Pack Cont. 1
    Package Content packed in EA
    Port count 8
    Product Family Fibre Optic External/Internal Enclosure
    Product Group S5 Series MDU/MBU Enclosures
    Short Description Unloaded MDU S5
    Technical Description A 568 x 375 x 165mm (H x W x D) enclosure manufactured in light grey (RAL 7035) ABS (Acrylonitrile Butadiene Styrene). The enclosure is UV stable with an IP54, IK08 and V0 rating. Designed with 8 dual input/output ports, 4 across the bottom, 2 on the top and 2 on each side, each port will accommodate a 20 or 25mm cable gland. A 100 x 25mm inset position on the front cover allows for a customer logo to be moulded in to the enclosure.
    Type MDU-S5
    Variant Indoor/Outdoor FTTx Enclosures
    Depth (D) 165mm
    Height (H) 568mm
    Width (W) 375mm
    IP-Rating IP54
    Country of Origin GB
    GTIN-13 / EAN 5022660164286
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
    Show all
