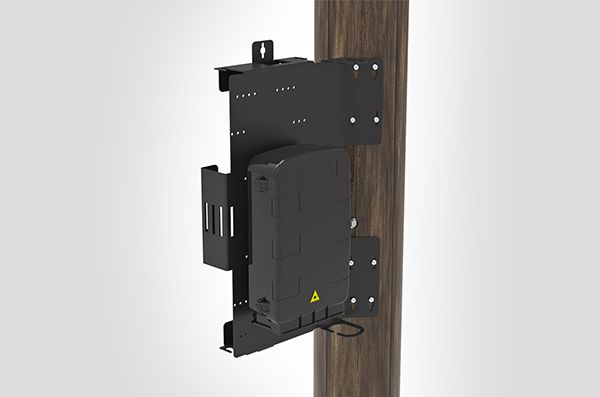

Pole / Wall Mounting Brackets

Pole / Wall Mounting

HellermannTyton have designed a range of wall and pole mounting brackets that accommodate the FFE, the AFN or both enclosures.

Single Enclosure: There are 3 ‘single enclosure’ mounting brackets, both offering cable or duct anchoring and fibre storage at the rear:

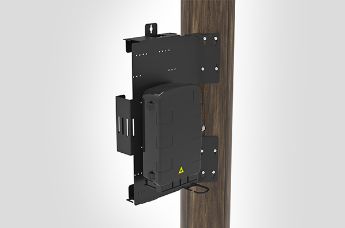

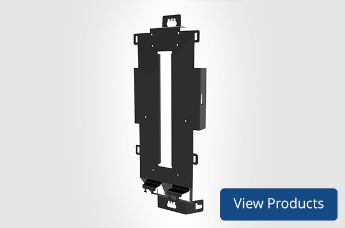

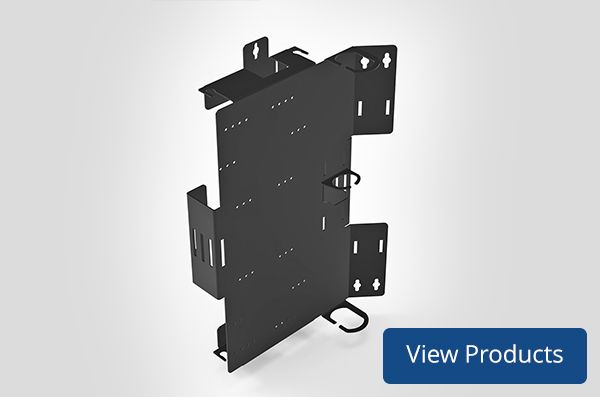

• The MB-AFN/FFE-PB001 (inset image) and MB-AFN/FFE-PWB-001 accommodate 1 x AFN or FFE.
• The MB-AFN-PWB/BK-400MM holds 1 x AFN.

Multiple Enclosures: There are 2 mounting brackets that have been designed to be able to support more than one enclosure:

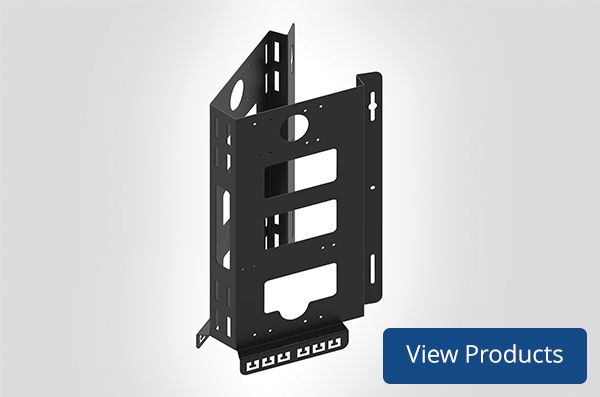

• The MB-AFN/FFE-V-BRKT-V2 lightweight bracket accommodates either 2 AFN’s, 2 FFE’s or one of each enclosure. It has no loop storage available.

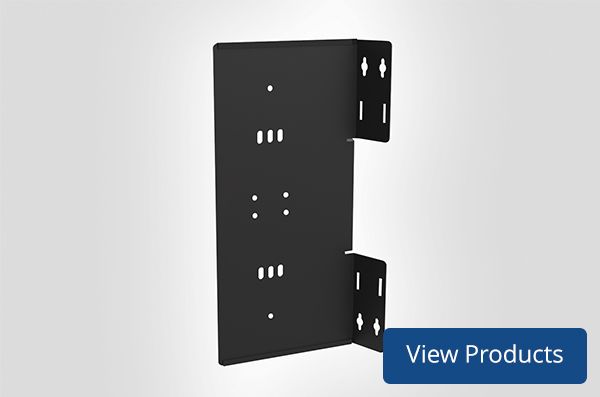

• The MB-AFN-DUAL-BRKT bracket accommodates 2 x MB-AFN-PWB/BK-400MM brackets which can each hold 1 x AFN and provides some space for fibre storage at the rear.

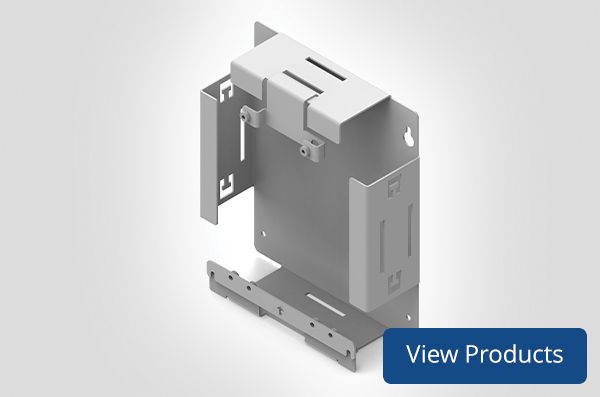

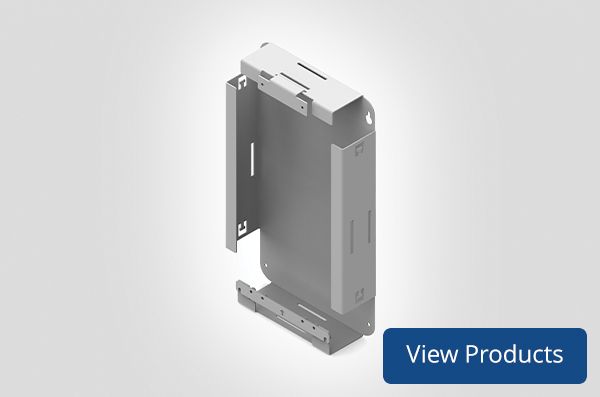

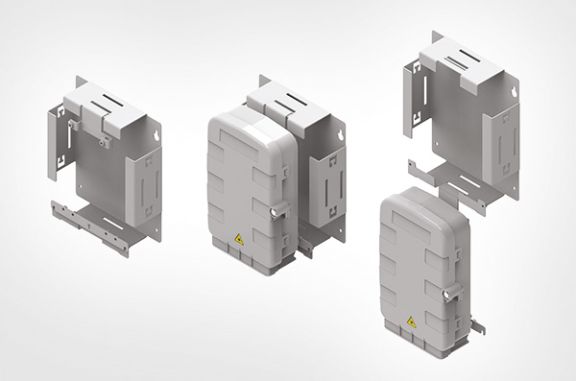

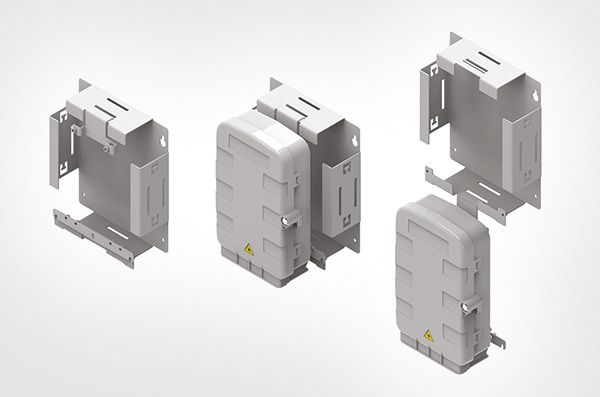

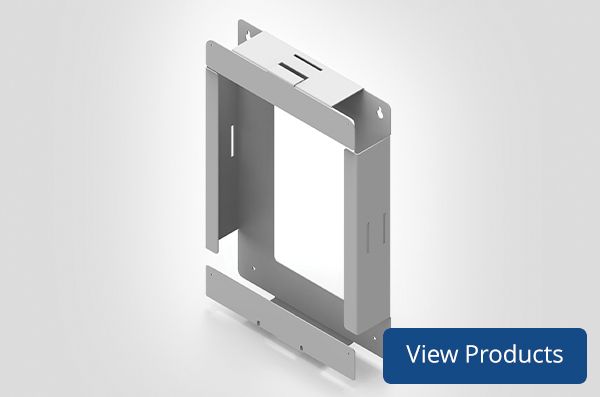

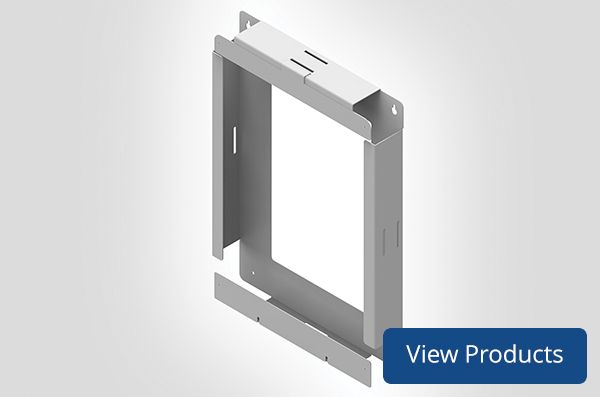

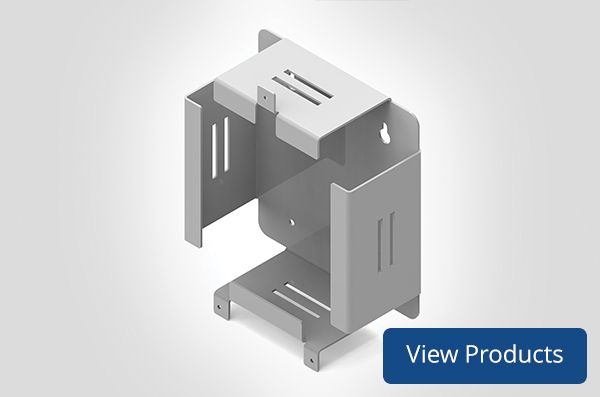

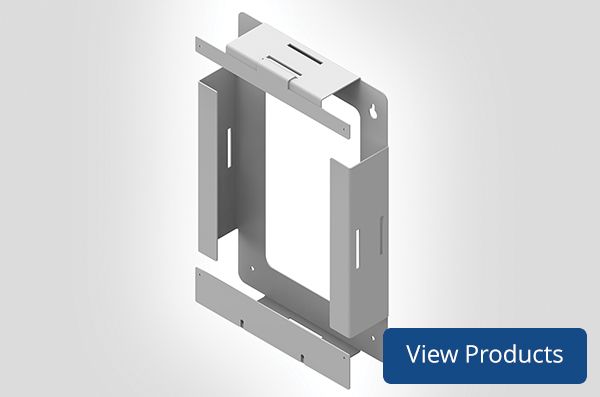

MDU Rear Mounting Storage Brackets

The rear mounting storage brackets have been designed to allow for effective MDU wall mounting at both low and high levels. The MDU is affixed to a back plate which then secures to the wall mounted storage bracket. It allows engineers to safely remove the MDU and bring it down to working level.

The back plate also features a hook system that allows engineers to hang the MDU off the storage bracket and offers flexibility in working methods and environments. The storage brackets have been designed to hold and store up to 4 metres of drop cable. A number of anchor points are located around the bracket to allow for multiple cable tie points, ensuring stability and security for the stored drop cable.

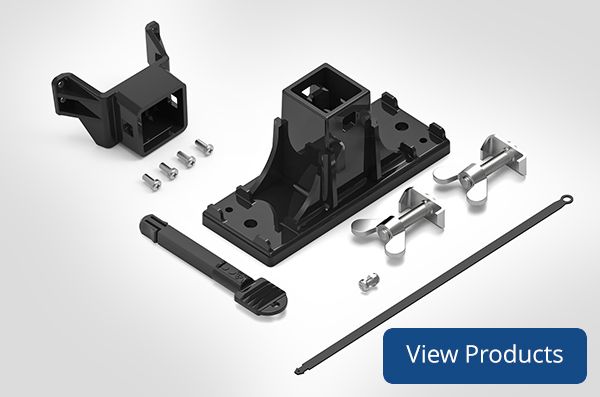

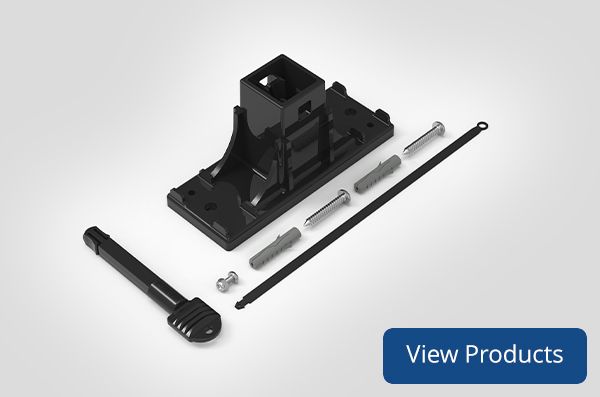

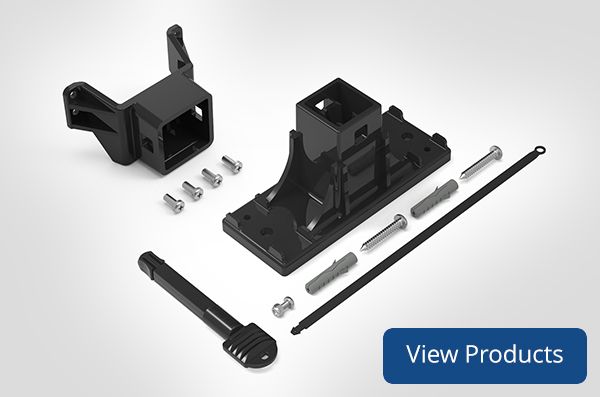

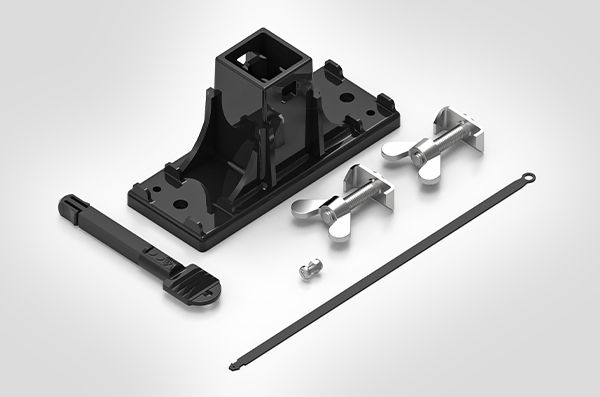

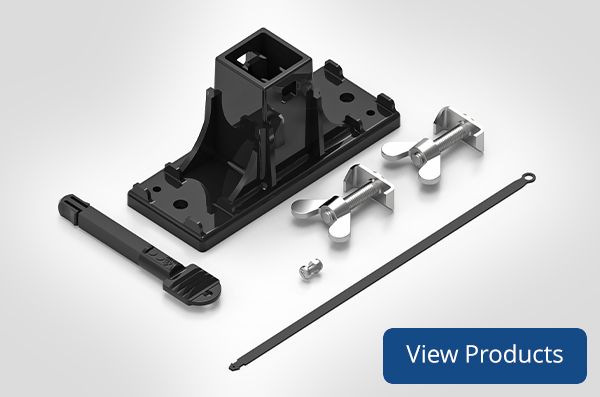

Dome Closure Wall/Pole/Mobra Mounting Kits

A range of mounting bracket kits are available for use with the HellermannTyton dome closures. The kits are designed to allow closures to be mounted in a pit using a Mobra Pit Arm or onto a Wall or Pole.

The mounting bracket is attached to the base allowing the cover to be removed and the closure to be worked on whilst in situ.  The brackets simple design makes them quick and easy to install.

• Simple design, easy to install
• Lightweight
• Cover can be removed, allowing the closure to be worked on whilst in situ
