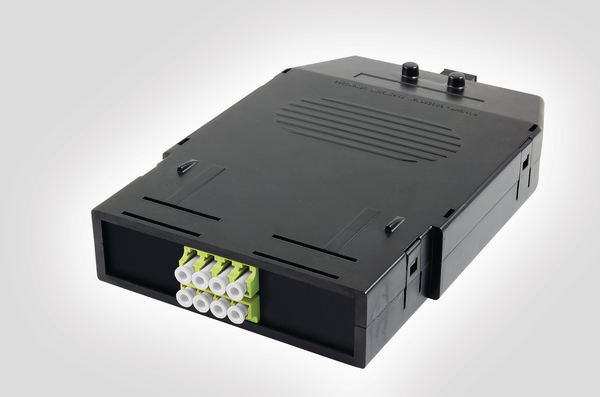

OM5 RapidNet Fibre LC Cassette with 8 Ports and 1 Rear MTP Connector
Art.-No. 859-23197
| RNFTQ08-LCMMM5-XX.XX
|
Details
- 32 fibres in 1U of Space
- Significantly reduced installation times
- Available in OM4 and OM5
- Interchangeable with other RapidNet Cassettes
- MTP rear connector ideal for installations in areas of limited space
- Pre-tested with test results supplied
- Male MTP Connectors
More products in this product group:
| Colour | Light Green (LTGN) |
| Connector Colour | Light Green (LTGN) |
| Connector Type | LC |
| PART DESCRIPTION | RNFTQ08-LCMMM5-XX.XX |
| Performance Category | OM5 Multimode |
| Port count | 8 |
| Product Description | The RapidNet 8 Fibre LC Cassette with MTP connectivity is pre-terminated offering 8 ports in one cassette and has 1 MTP connector on the rear of the case for use with MTP back bone cables or fibre fan outs. The RapidNet LC Cassette with MTP connectivity solution has been designed to make installation quicker and easier, especially where space is limited, by providing reduced installation times, efficient use of space, flexible configurations and high performance. |
| Product Family | Cassette with 1 Rear MTP Connector |
| Product Group | RapidNet Fibre LC |
| Short Description | OM5 RapidNet Fibre LC Cassette with 8 Ports and 1 Rear MTP Connector |
| Type | RNFTQ08-LCMMM5-XX.XX |
