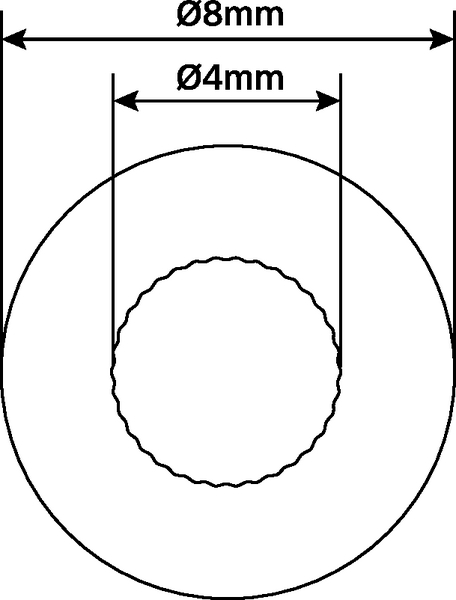

SP-G SpeedPipe Ground 8/4MM
Art.-No. 872-00066
| SP-G-8/4MM-3920-PE-HD-VT
|
Details
- Ideal for Direct Buried (DB) applications
- Optimised for long distance blowing
- Suitable for Push or Pulled installations
- Superior dimensional tolerances
- Very low ovality
- Coated with LFL (Low Friction Liner)
30 bar burst test - Made from high quality HDPE
- Other colours available on request (MOQs apply)
More products in this product group:
| Application | Suitable for the extension or construction of passive infrastructure in fibre optic networks speedpipe ground is suitable for direct burying in all FTTx networks as well as for branching-off from existing duct routes. |
| Cable ∅ max | 5.93mm |
| Cable ∅ min | 2.4mm |
| Colour | Purple (PE) |
| Local order number | 3920 |
| Material | Polyethylene, high density (PE-HD) |
| PART DESCRIPTION | SP-G-8/4MM-3920-PE-HD-VT |
| Pack Cont. | 800m |
| Package Content packed in | drum |

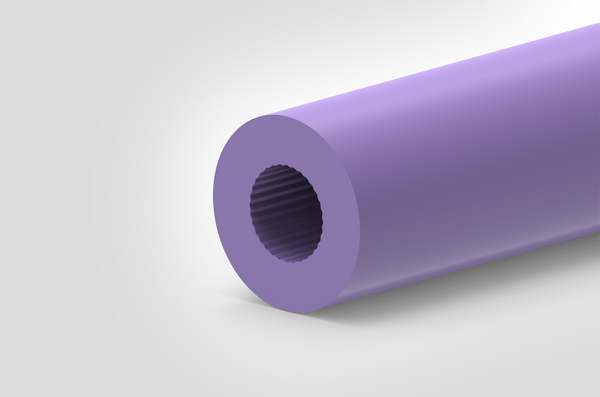

| Product Description | The 8/4mm Speedpipe Ground (SP-G) is a thick walled duct manufactured from high quality HDPE material suitable for direct buried applications. The duct is manufactured to a high specification with sliding ribs and a low friction liner (LFL) which provides the optimum air cushion between the fibre optic cable and the duct during the blowing process. The tight manufacturing specification and high apex pressure resistance helps our speedpipe retain its round shape and enables consistent results when blowing in fibre optic cables, even after decades of use in its application. |
| Product Family | Direct Buried/Thick Walled/HDPE |
| Product Group | SP-G SpeedPipe Ground |
| Short Description | SP-G SpeedPipe Ground 8/4MM |
| Type | SP-G-8/4MM-3920 |
Download
| Country of Origin | EE |
| GTIN-13 / EAN | 4031051017521 |
| Packaging 1 - Height (m) | 0.7m |
| Packaging 1 - Length (m) | 0.48m |
| Packaging 1 - Qty | 800 |
| Packaging 1 - Type | drum |
| Packaging 1 - Volume (m³) | 0.12432m³ |
| Packaging 1 - Weight (kg) | 41kg |
| Packaging 1 - Width (m) | 0.37m |
| Packaging 2 - Length (m) | 0.7m |
| Packaging 2 - Qty | 4000 |
| Packaging 2 - Type | pallet |
| Packaging 2 - Width (m) | 0.48m |
