Shielded Zone Termination Box
Art.-No. 854-20029 | ZTB12SC6XX/GY |  Details

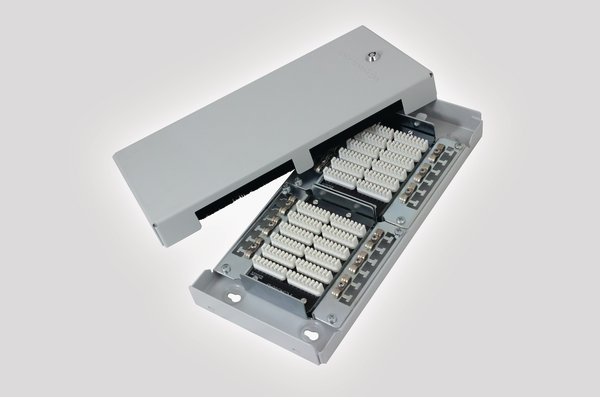

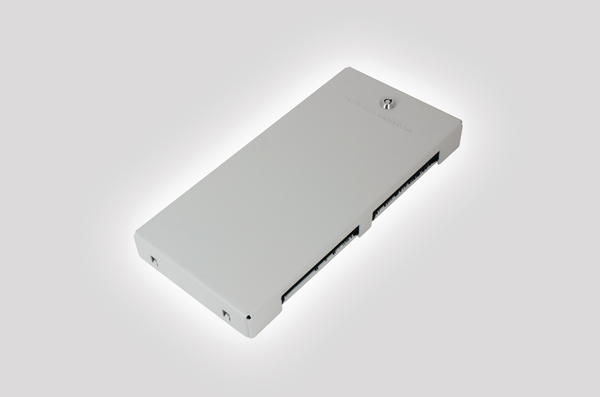

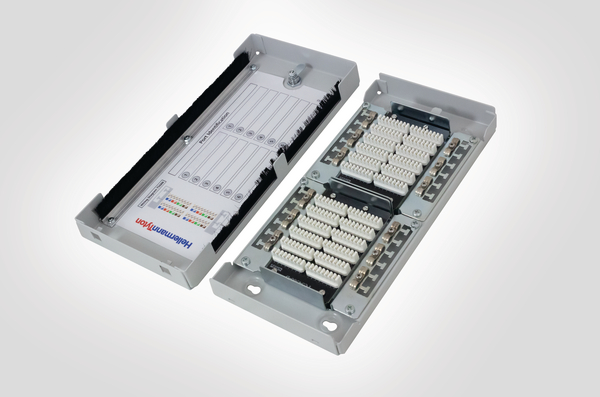

Zone Termination Box (ZTB) removable lid and fixing points

    Add to watchlist
    Downloads CAD-Download
    PART DESCRIPTION ZTB12SC6XX/GY
    Pack Cont. 1pc.
    Package Content packed in box
    Performance Category Category 6 (Class E)
    Product Family Consolidation Points and Enclosures
    Product Group Shielded Zone Termination Box
    Short Description Shielded Zone Termination Box

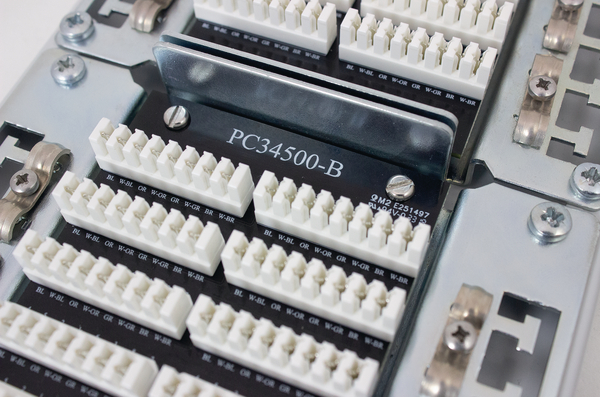

    Technical Description The Zone Termination Box (ZTB) from HellermannTyton Connectivity is a compact and robust internal consolidation point. The ZTB has been designed to work as part of a Zone Cabling topology which allows for more flexibility in regards to MAC’s within a structured cabling network. Alternatively it can be used when converting incoming external grade cable over to internal CPR compliant cable. As standard, the ZTB benefits from HellermannTyton Category 6 PCB technology (backwards compatible with Category 5e). Designed for high performance and reliability this product forms part of the HellermannTyton system warranty when installed by an accredited HellermannTyton installer. The shielded model allows for up to 12 cable lines to be terminated. The compact size of the ZTB means it can be easily fixed into a variety of small spaces in ceiling voids, raised floor, risers or even under the desk. The base and lid are made from 1.5mm thick mild steel and is supported by internal steel cross-members located on the PCB trays which ensure the ZTB is strong and robust enough to withstand possible damage within shared utility environments.
    Type ZTB12SC6XX/GY
    Depth (D) 138.6mm
    Height (H) 36mm
    Width (W) 294mm
    Country of Origin GB

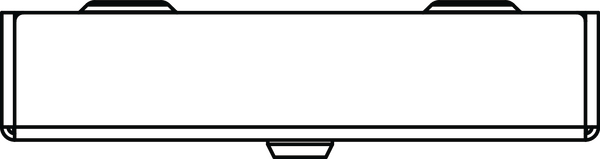

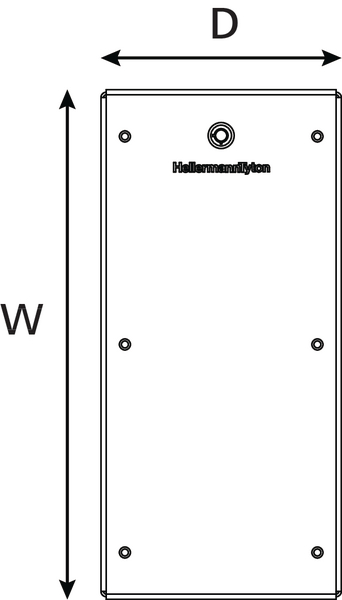

    Dimensions W x H x D 294 mm x 36 mm x 138.6 mm
    GTIN-13 / EAN 5022660168987
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
