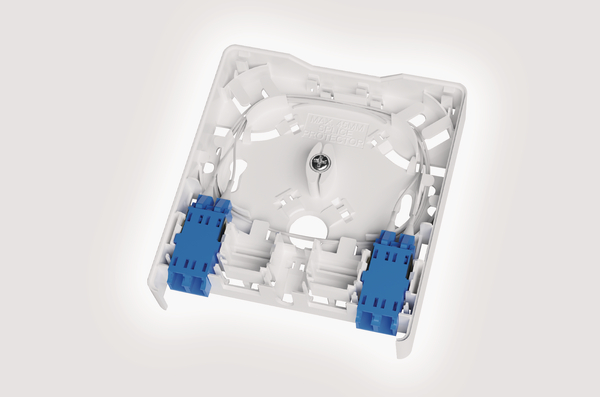

FWO with 2 x LC DX PC Adaptors and 4 x LC PC Pigtails.
Art.-No. 857-01623
| FWOA-LP-LP/WH
|
Details
- 2 x LC PC Duplex Adaptors and 4 x LC PC Pigtails
- Install directly on the wall or onto a flush-mount back box
- Cable entry at the base, through the rear of the unit or at the sides
- Accommodates up to 4 splice protectors (up to 45mm)
- Quality surface finish
- Tamper-proof latches
- Positive fibre management to ensure a 30mm minimum bend radius
More products in this product group:
| Application | "The wall mounted fibre optic outlet allows a fibre optic cable to be connected directly into the end user apartment." |
| Colour | White (WH) |
| Connector Colour | Blue (BU) |
| Connector Type | LC |
| Content |
Fibre Wall Outlet 2 x LC PC Duplex Adaptor 4 x LC PC Pigtail Wall Mounting Kit |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| PART DESCRIPTION | FWOA-LP-LP/WH |
| Product Description | FWO with 2 x LC DX PC Adaptors and 4 x LC PC Pigtails. |
| Product Family | Fibre Optic Internal Enclosure |
| Product Group | Fibre Wall Outlet |
| Short Description | FWO with 2 x LC DX PC Adaptors and 4 x LC PC Pigtails. |
| Splice Capacity | 4 |
| Technical Description | The closure is manufactured from ABS plastic and tamper proof latches secure the cover to the base. The closure has 2 bottom and 1 rear cable entry point. The closure is supplied with two LC PC Duplex fibre adaptors and 4 LC PC Pigtails. Fibre management features ensure a minimum bend radius of 25mm is maintained as the bare fibre is routed through the outlet and press fit strain relief features secure the incoming cable whilst cable tie anchor points are provided for additional strain relief. Screw holes allow for easy installation and positioning, alternatively the recessed base means the closure can be fastened with adhesive, maintaining the outlet flush to the wall. |
| Type | FWOA-LP-LP/WH |
