FWO with 1 x LC DX APC Adaptor and 2 x LC APC Pigtails.
Art.-No. 857-01625 | FWOA-XX-AP/WH | Details

Distributors near you

More products in this product group:

Application	The wall mounted fibre optic outlet allows a fibre optic cable to be connected directly into the end user apartment.
Colour	White (WH)
Connector Colour	Green (GN)
Connector Type	LC-APC
Content	Fibre Wall Outlet 1 x LC APC Duplex Adaptor 2 x LC APC Pigtails Wall Mounting Kit
Material	Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION	FWOA-XX-AP/WH
Product Description	FWO with 1 x LC DX APC Adaptor and 2 x LC APC Pigtails.
Product Family	Fibre Optic Internal Enclosure
Product Group	Fibre Wall Outlet
Short Description	FWO with 1 x LC DX APC Adaptor and 2 x LC APC Pigtails.
Splice Capacity	4

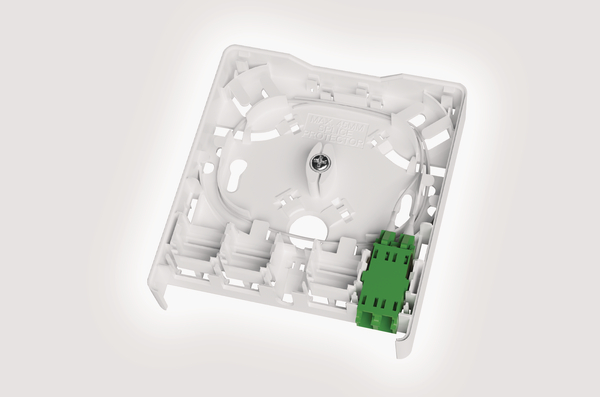

Technical Description	The closure is manufactured from ABS plastic and tamper proof latches secure the cover to the base. The closure has 2 bottom and 1 rear cable entry point. The closure is supplied with a single LC APC Duplex fibre adaptor and 2 x LC APC Pigtails. Fibre management features ensure a minimum bend radius of 25mm is maintained as the bare fibre is routed through the outlet and press fit strain relief features secure the incoming cable whilst cable tie anchor points are provided for additional strain relief. Screw holes allow for easy installation and positioning, alternatively the recessed base means the closure can be fastened with adhesive, maintaining the outlet flush to the wall.
Type	FWOA-XX-AP/WH
