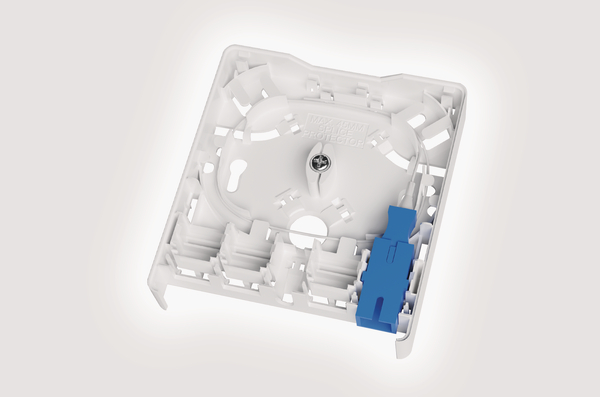

FWO with 1 x SC SX PC Adaptor and 1 x SC PC Pigtail.
Art.-No. 857-01236
| FWOA-XX-SP/WH
|
Details
- 1 x SC PC Simplex Adaptor and 1 x SC PC Pigtail
- Install directly on the wall or onto a flush-mount back box
- Cable entry at the base, through the rear of the unit or at the sides

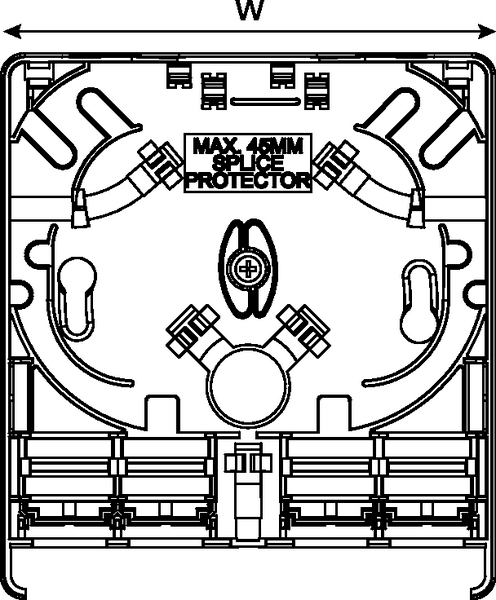

- Accommodates up to 4 splice protectors (up to 45mm)
- Quality surface finish
- Tamper-proof latches
- Positive fibre management to ensure a 30mm minimum bend radius
More products in this product group:
| Application | The wall mounted fibre optic outlet allows a fibre optic cable to be connected directly into the end user apartment. |
| Colour | White (WH) |
| Connector Colour | Blue (BU) |
| Connector Type | SC |
| Content |
Fibre Wall Outlet 1 x SC PC Simplex Adaptor 1 x SC PC Pigtail Wall Mounting Kit |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| PART DESCRIPTION | FWOA-XX-SP/WH |
| Product Description | FWO with 1 x SC SX PC Adaptor and 1 x SC PC Pigtail. |
| Product Family | Fibre Optic Internal Enclosure |
| Product Group | Fibre Wall Outlet |
| Short Description | FWO with 1 x SC SX PC Adaptor and 1 x SC PC Pigtail. |
| Splice Capacity | 4 |
| Technical Description | The fibre wall outlet is manufactured from ABS plastic and tamper proof latches secure the cover to the base. The outlet has a cable entry point at the front, rear and on each side and is supplied with a single SC PC Simplex fibre adaptor and pigtail. Fibre management features ensure a minimum bend radius of 30mm is maintained as the bare fibre is routed through the outlet and strain relief and cable anchor points secure the incoming cable. Screw holes allow for easy installation and positioning, alternatively the recessed base means the closure can be fastened with adhesive, maintaining the outlet flush to the wall. |
| Type | FWOA-XX-SP/WH |
