21/12/2024

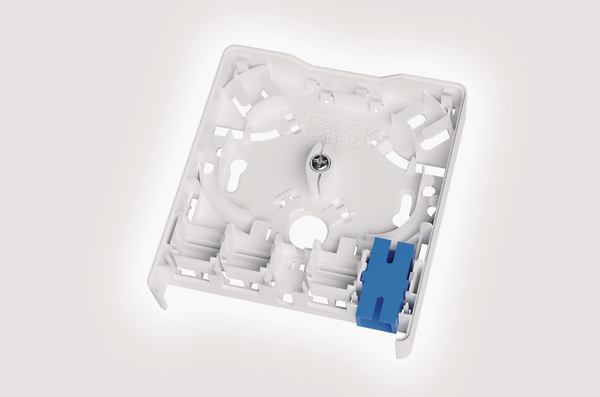

FWO with 1 x SC PC Adaptor.
Art.-No. 857-01235 | FWOA-XX-SX/WH |  Details

Fibre Wall Outlet with one adaptor.

    • 1 x SC PC Simplex Fibre Adaptor
    • Install directly on the wall or onto a flush-mount back box
    • Cable entry at the base, through the rear of the unit or at the sides
    • Accommodates up to 4 splice protectors (up to 45mm)
    • Quality surface finish
    • Tamper-proof latches
    • Positive fibre management to ensure a 30mm minimum bend radius
    Show more
    Add to watchlist
    Downloads CAD-Download
    Application The wall mounted fibre optic outlet allows a fibre optic cable to be connected directly into the end user apartment.
    Colour White (WH)
    Connector Colour Blue (BU)
    Connector Type SC
    Content Fibre Wall Outlet
    1 x SC PC Simplex Adaptor
    Wall Mounting Kit
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION FWOA-XX-SX/WH
    Pack Cont. 50pc.
    Product Description FWO with 1 x SC PC Adaptor.
    Product Family Fibre Optic Internal Enclosure
    Product Group Fibre Wall Outlet
    Short Description FWO with 1 x SC PC Adaptor.
    Splice Capacity 4
    Technical Description The fibre wall outlet is manufactured from ABS plastic and tamper proof latches secure the cover to the base. The outlet has a cable entry point at the front, rear and on each side and is supplied with a single SC PC Simplex fibre adaptor. Fibre management features ensure a minimum bend radius of 30mm is maintained as the bare fibre is routed through the outlet and strain relief and cable anchor points secure the incoming cable. Screw holes allow for easy installation and positioning, alternatively the recessed base means the closure can be fastened with adhesive, maintaining the outlet flush to the wall.
    Type FWOA-XX-SX/WH
    Depth (D) 21mm
    Height (H) 96mm
    Width (W) 85mm
    Country of Origin GB
    GTIN-13 / EAN 5022660158377
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
