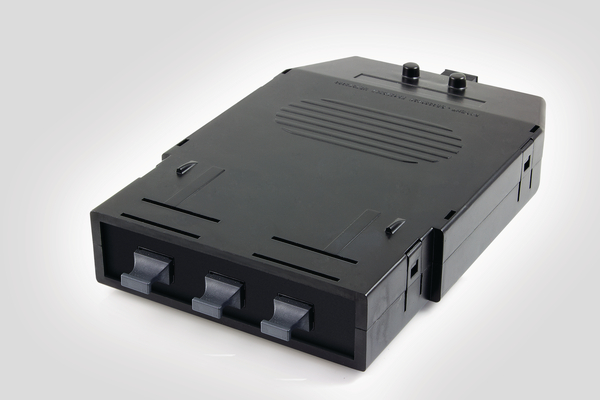

OM5 RapidNet MTP Transition Cassette with 1 Rear MTP Connector
Art.-No. 859-23205 | RNFT324-MC1MM5-XX.XX Details

  • Up to 96 fibres in 1U of Space
  • High performance low loss Elite® connectors from US Conec
  • Significantly reduced installation times
  • Available in OM4 and OM5
  • Interchangeable with other RapidNet Cassettes
  • Pre-tested with test results supplied
  • Male MTP Connectors
Show more
Connector Colour Black (BK)
Connector Type MTP
PART DESCRIPTION RNFT324-MC1MM5-XX.XX
Product Description The RapidNet 8 Fibre MTP Cassette preterminated with 1 rear MTP connector has been designed to make installation quicker and easier, especially where space is limited, by providing reduced installation times, efficient use of space, flexible configurations and high performance.
Product Family Cassette with 1 Rear MTP Connector
Product Group RapidNet MTP Transition Cassette
Short Description OM5 RapidNet MTP Transition Cassette with 1 Rear MTP Connector
Type RNFT324-MC1MM5-XX.XX

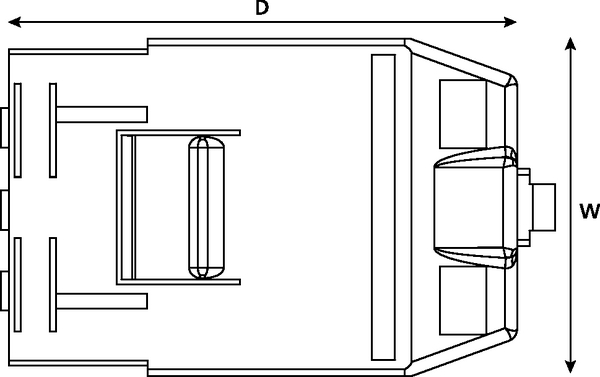

Depth (D) 130mm

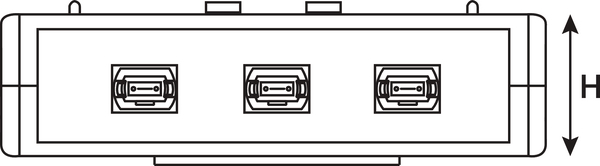

Height (H) 27mm
Width (W) 102mm
Country of Origin GB
Dimensions W x H x D 102 mm x 27 mm x 130 mm
GTIN-13 / EAN 5022660160578
