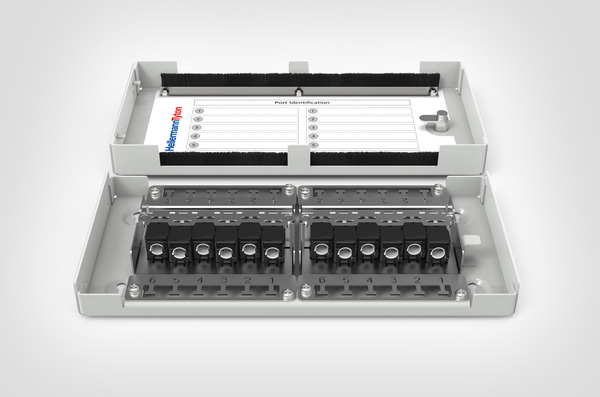

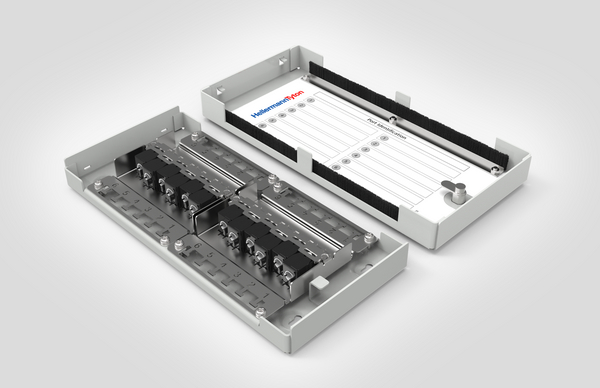

12 Way Modular Zone Termination Box Loaded with 12 x HTC CAT6 UTP Tool Free Jacks
Art.-No. 854-20033 | ZTB12J6BKXXXX/GY |  Details

Modular Zone Termination Box loaded with 12x CAT6 UTP Black Jacks

    • Supports Category 6A, Category 6 and Fibre
    • Uses Hellermantytons Modular Connectivity Cat6 Keystone Jacks
    • Accepts up to 12 cable lines
    • 1.5mm Mild Steel for added strength
    • Internal Steel cross-member supports for increased impact resistance
    • Compact size allows for installation in restricted spaces
    • Removeable lid for ease of termination / installation
    • Lockable for security
    • Fixings points to allow for installation on walls/risers, in ceilings, floor or under desk
    • Grey powder coated finish for humidity and temperature protection
    • Brush strips for easy cable entry/exit and debris free operation
    • Integral cable anchor points
    • Port identification
    Show more
    Add to watchlist
    Downloads CAD-Download
    PART DESCRIPTION ZTB12J6BKXXXX/GY
    Performance Category Category 6 (Class E), Modular
    Port count 12
    Product Family Consolidation Points and Enclosures
    Product Group Modular Zone Termination Box CAT6 UTP
    Short Description 12 Way Modular Zone Termination Box Loaded with 12 x HTC CAT6 UTP Tool Free Jacks
    Technical Description The Modular Zone Termination Box (ZTB) is a compact and robust internal consolidation point. The ZTB has been designed to work as part of a Zone Cabling topology which allows for more flexibility in regards to MAC’s within a structured cabling network. This modular version of the ZTB allows for the use of HellermannTyton keystone jacks and fibre adaptors, making it easier to configure each box to your bespoke requirements giving even greater flexibility. Pre-loaded with HTC CAT6 UTP Tool Free Jacks
    Type ZTB12J6BKXXXX/GY
    Depth (D) 138.6mm
    Height (H) 36mm
    Width (W) 294mm
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Dimensions W x H x D 294 mm x 36 mm x 138.6 mm
    GTIN-13 / EAN 5022660172557
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
