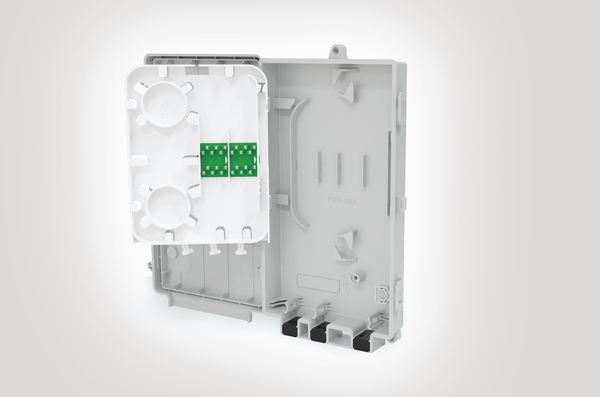

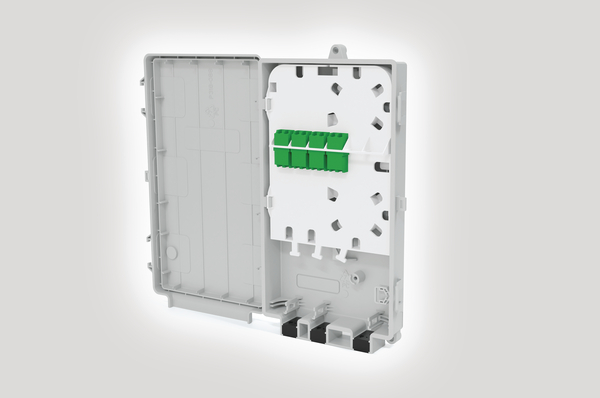

MDU S1 XS with 4 LC DX APC Adaptors and 2 x 1:4 Splitters
Art.-No. 857-02223
| MDU-S1XS-T14AS21S
|
Details
- 8 x LC APC Connectorised Customer Connections (maximum capacity 12)
- 4 x LC APC Duplex Adaptors
- 2 x 1:4 Bare End to LC APC PLC Splitter
- 4 x 3A fibre splices
- Positive fibre management (30mm minimum bend radius)
- Splitter accommodation
- IP54 rating
- UV Stable
- Low Profile
- Tamper-proof
More products in this product group:
| Application | Designed for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Point (P2P) or Point to Multi Point (P2MP) network with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors. |
| Cable ∅ max | 8mm |
| Cable ∅ min | 1mm |
| Colour | Grey RAL 7035 (RAL7035) |
| Content |
4 x LC APC Adaptors 2 x 1:4 Bare End to LC/APC Splitter Fibre Management Tray 2 x 3A Splitter Splice Bridges Cable Entry/Exit Kit 6 - 8mm Mechanical Fixing Kit Wall Mounting Kit Laser Label |
| PART DESCRIPTION | MDU-S1XS-T14AS21S |
| Product Family | Fibre Optic External/Internal Enclosure |
| Product Group | S1 XS Series MDU/MBU Enclosures |
| Short Description | MDU S1 XS with 4 LC DX APC Adaptors and 2 x 1:4 Splitters |
| Splice Capacity | 6 |

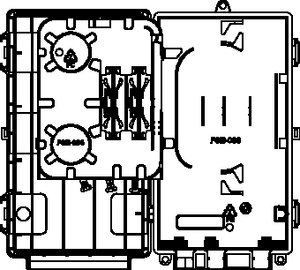

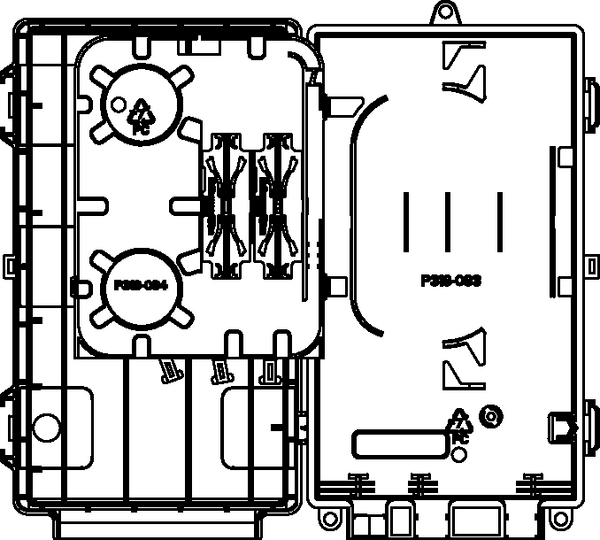

| Technical Description | The MDU S1 XS is V0 rated with an IP54 sealing performance. With up to 6 entry/exit ports at the bottom of the enclosure which are suitable for cables or ducts up to a maximum diameter of 8mm. A loop through facility allows for single fibre elements to be removed and spliced whilst the remaining fibres can be fed on to the next connection point. Mechanical fixing is provided to secure all incoming/outgoing cable or blown fibre ducts and to provide strain relief where necessary. Internal positive fibre management and fibre retention clips maintain a minimum 30mm bend radius throughout. The MDU S1 XS manages up to 6 SC simplex or LC duplex adaptors and has features to secure a maximum of 30 fibre splices. The lid is hinged allowing quick and clear access to the internal fibre for splicing and termination and the lid can be replaced if damaged. The MDU S1 XS can be supplied pre-loaded with fibre adaptors and pigtails as required. |
| Type | MDU-S1XS-T14AS21S |
