MDU S1 XS with 3 x 3A Splice Bridges
Art.-No. 857-02222 | MDU-S1XS-T1XXX21X |  Details

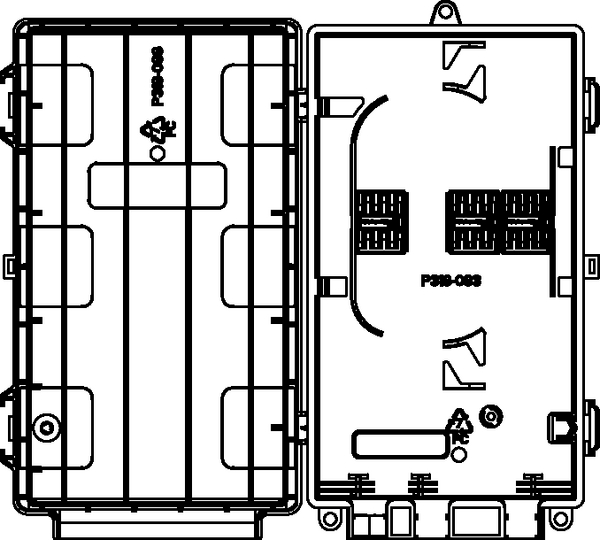

Internal view of the MDU - S1XS Enclosure.

    • Capacity for up to 12 Customer Connections 18 x 3A fibre splices
    • Positive fibre management (30mm minimum bend radius)
    • Splitter accommodation
    • IP54 rating
    • UV Stable
    • Low Profile
    • Tamper-proof
    Show more
    Add to watchlist
    Downloads CAD-Download
    Application Designed for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Point (P2P) or Point to Multi Point (P2MP) network with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
    Cable ∅ max 8mm
    Cable ∅ min 1mm
    Colour Grey RAL 7035 (RAL7035)
    Content 3 x 3A Splice Bridges
    Cable Entry/Exit Kit 6 - 8mm
    Mechanical Fixing Kit
    Wall Mounting Kit
    Laser Label
    PART DESCRIPTION MDU-S1XS-T1XXX21X
    Product Family Fibre Optic External/Internal Enclosure
    Product Group S1 XS Series MDU/MBU Enclosures
    Short Description MDU S1 XS with 3 x 3A Splice Bridges
    Splice Capacity 18
    Technical Description The MDU S1 XS is V0 rated with an IP54 sealing performance. With up to 6 entry/exit ports at the bottom of the enclosure which are suitable for cables or ducts up to a maximum diameter of 8mm. A loop through facility allows for single fibre elements to be removed and spliced whilst the remaining fibres can be fed on to the next connection point. Mechanical fixing is provided to secure all incoming/outgoing cable or blown fibre ducts and to provide strain relief where necessary. Internal positive fibre management and fibre retention clips maintain a minimum 30mm bend radius throughout.
    Type MDU-S1XS-T1XXX21X

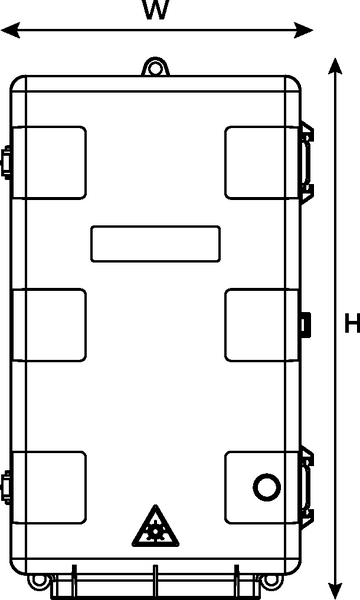

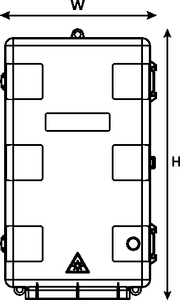

    Depth (D) 37mm
    Height (H) 233mm
    Width (W) 135mm
    IP-Rating IP54
    Country of Origin GB
    GTIN-13 / EAN 5022660177576
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
