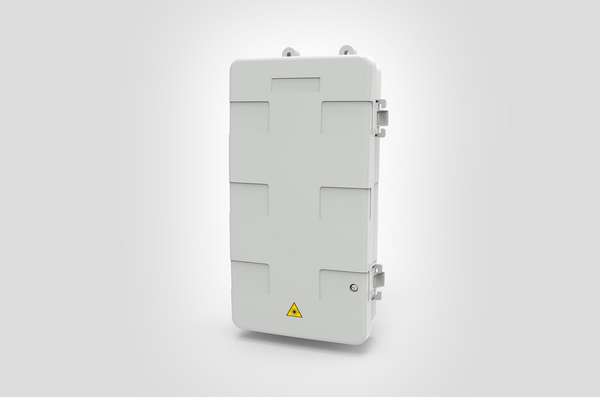

MDU S2 XL with LC QD APC Adaptors
Art.-No. 857-02484
| MDU-S2XL-32LC/APC
|
Details
- 8 LC/APC QD Adaptors
- 4 Inbound/24 Outbound ports
- Separation of inbound fibre from connectorised drop cables
- Positive fibre management to maintain consistent 30mm minimum bend
- PLC splitter accommodation (60mm x 7mm x 4mm)
- Maximum of 48 (double stacked) 3A splices
- IP55 and IK08 and V0 rating
- Pole or building/facade mounted
More products in this product group:
| Application | The MDU S2XL (Multi Dwelling Unit S2) has been designed for deployment within the last mile of the FTTx network. This enclosure can be used within a P2P (Point to Point) or P2MP (Point to Multi Point) network with the addition of connectorised PLC splitters or pigtails and adaptors. |
| Cable ∅ max | 8.0mm |
| Cable ∅ min | 0.1mm |
| Colour | Grey RAL 7035 (RAL7035) |
| Connector Type | LC Quad |
| Content |
S2 Enclosure 8 LC APC Quad Adaptors Entry/Exit Port Seals Fibre Picker Wall Mounting Kit Cable Ties Red/Green |
| Material | Polycarbonate, UV-stabilised (PCUV) |
| PART DESCRIPTION | MDU-S2XL-32LC/APC |
| Pack Cont. | 1pc. |
| Package Content packed in | box |
| Product Family | Fibre Optic External/Internal Enclosure |
| Product Group | S2 XL Series MDU/MBU Enclosures |
| Short Description | MDU S2 XL with LC QD APC Adaptors |
| Splice Capacity | 48 (double stacked) |

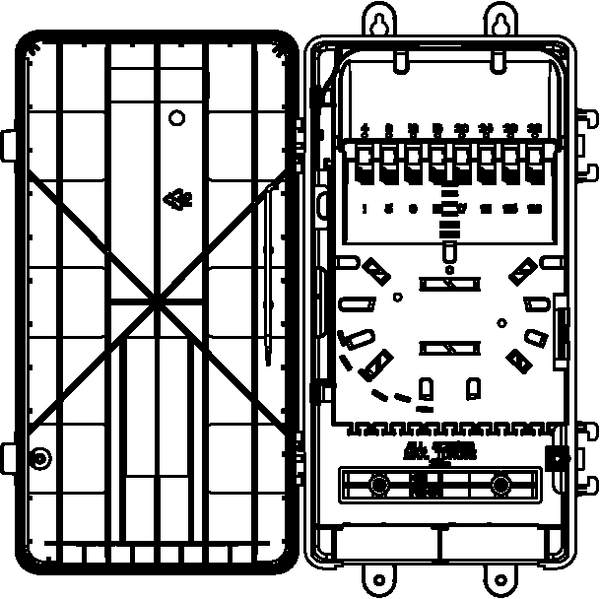

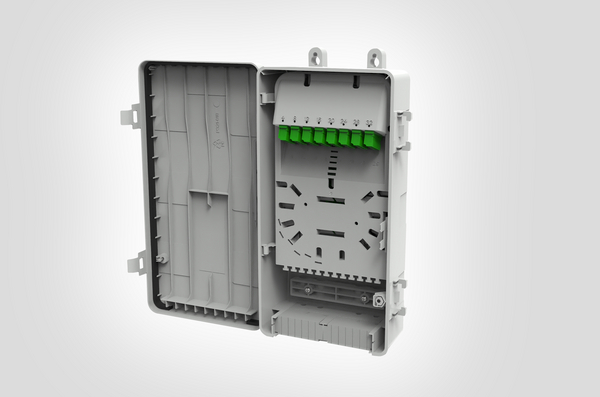

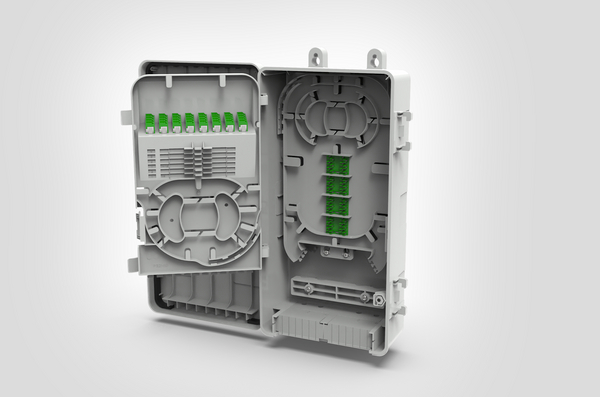

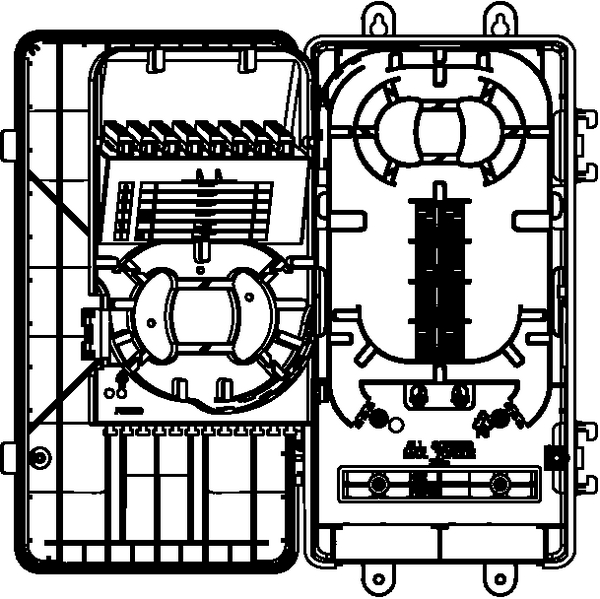

| Technical Description | The MDU S2XL enclosure is manufactured from V0 rated and UV stable grey polycarbonate with a completely detachable lid which can also be snapped back in to position using the snap back hinges allowing unrestricted access to all fibre management areas. The enclosure has 3 separate management areas for inbound cable, fibre splice management and drop cable (customer connection) management. The inbound cable management area has a dedicated cable entry port which supports both cable end and mid-span applications with loop storage capacity for up to 4m of 144 core fibre cable and the entry port is sealed with a cable entry kit to maintain the IP55 rating. The fibre splice management area has capacity for a maximum of 48 3A splices (if double stacked) and maintains positive fibre management (30mm minimum bend radius) throughout. The tray has a crossover facility which allows for alternative routing requirements and a fibre storage capacity of 1.5m for 250µm fibre. The drop cable management area presents 8 LC APC Quad adaptors for connection to industry standard pre-terminated drop cables and a maximum of 4 PLC splitters (60mm x 7mm x 4mm) can be fitted on the inside of the management area. The drop cable management area cover prevents access to the network cables and splicing area and the adaptors are angled and spaced to allow for inspection prior to connection. Twelve anchor guides are provided for securing the drop cables and two integral exit seals maintain the IP55 rating and allow 32 customer drops ( 8 exit ports per seal with maximum of 2 x 3.5mm cables per exit port). |
| Type | MDU-S2XL-32LC/APC |
| Variant | Indoor/Outdoor FTTx Enclosures |
